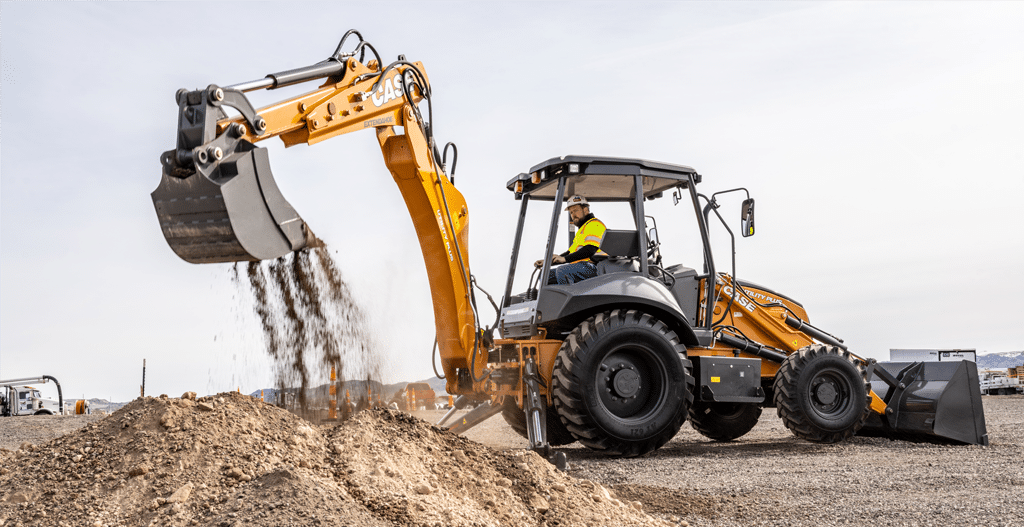

The all-new CASE Utility Plus backhoe loader delivers full-sized backhoe performance in an efficient platform that’s easy to own, easy to maintain, and easy on the bottom line.
Designed for landscaping, ag, rental, general construction and utility work — the Utility Plus delivers a big cab with excellent sightlines to all work areas, extreme ease of service with a maintenance-free emissions system, and easy controls (including a choice of pilot or mechanical).
Whether your first backhoe or your 100th, the CASE Utility Plus delivers value and productivity that is both operator first and business smart.
Simple To Own & Operate
The all-new CASE Utility Plus delivers full-sized backhoe performance in an efficient platform that’s easy to own, easy to maintain, and easy on the bottom line. This new 74 horsepower machine delivers a big cab with excellent sightlines to all work areas, extreme ease of service with a maintenance-free emissions system (no DPF and no DEF), and easy controls (including a choice of pilot or mechanical).
Mechanical or Pilot Controls
Mechanical controls are offered for the more experienced operators who like that traditional backhoe “feel”, while pilot controls are available for rental businesses and contractors with younger, less-experienced operators.
Entry Level With Big Options
The CASE Utility Plus focuses on simplicity and offers excellent options like Extendahoe and an enclosed cab. It’s built to be versatile and allow equipment owners to build up from a simple base model to achieve the machine that is right for their business.
For more information, check out the 575 Utility Plus brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS certified protective canopy
- Rear fenders extensions
- Interior rearview convex mirror
- Mechanical suspension seat – 180° swivel – Vinyl
- 2 in (51 mm) retractable seat belt
- Gauges:
- Engine coolant temperature
- Converter oil temperature
- Fuel level; Tachometer/hourmeter
- Voltmeter
- Warning lights:
- Air cleaner restriction
- A/C Low or High Pressure
- Cold start
- Engine oil pressure
- Hydraulic oil filter bypass
- Parking brake engagement
- Low fuel
- Water in fuel
- Battery Charging
- Transmission Oil Temperature
- Brake Oil Level
- High Coolant Temperature
- Master Warning
- Master Stop
- Audible alarms:
- Coolant temperature
- Engine oil pressure
- Parking brake engagement
- Backup alarm
- Cold Start
- Transmission Oil Temperature
- Brake Oil Level
- Hydraulic oil filter bypass
- Horn: Dual switched front and rear
BACKHOE
- Center pivot design
- 1-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments – pedal switch activated
- 2-lever mechanical backhoe controls
- Flip over stabilizer pads
ENGINE
- FPT F5 diesel
- Full flow engine oil filter
- Aspirated air cleaner – replaceable dual element dry type with radial seal
- Fuel filter with water trap
- Diesel Oxidation Catalyst (DOC) – Spark Arresting
- Radiator with de-aeration bottle
- Antifreeze to -34° F (-37° C)
- Throttles, both hand rotary and foot
- Self adjusting belt
- High Pressure Common Rai
DRIVETRAIN
- Front axle:
- 4WD mechanically driven front axle, with 12.5/80-18 tires
- Rear axle:
- 4WD heavy-duty outboard planetary drive, with 16.9-28 tires
- 4F-4R Power Shuttle Synchromesh transmission
- Torque converter – 11.8 in (300 mm)
- On-the-go electric 4WD control
- Electric F/R shuttle control
- No differential lock
HYDRAULICS
- Heavy-duty hydraulic oil cooler
- 10-micron, spin on oil filter
OTHER
- Forward tilt engine hood
- Replaceable, molded front bumpers
- Front/Rear tie downs
- Reflective logos
- Working/Driving/Signal Lights – halogen
- Master disconnect switch and remote jump-start terminals
- Backup alarm
- Vertical spin-on engine oil, fuel and hydraulic filters
WARRANTY
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS certified protective cab
- 2 Door with heat, A/C, defroster, door activated dome light, 4 front and 4 rear lights, floor mat, tinted glass, radio ready, front and rear wiper and front fenders
- Mechanical suspension seat with flip-up armrests, 180° swivel, adjustable seat and weight, backrest angle, lumbar and cushion angle – cab units cloth or vinyl, canopy units vinyl only
LOADER
- 3-spool auxiliary hydraulics valve for loader mounted equipment – 2-lever loader control
- Buckets
BACKHOE
- Pilot Backhoe Controls
- Extendahoe®
- Buckets
BACKHOE
- Pilot Backhoe Controls
- Extendahoe®
- Buckets
