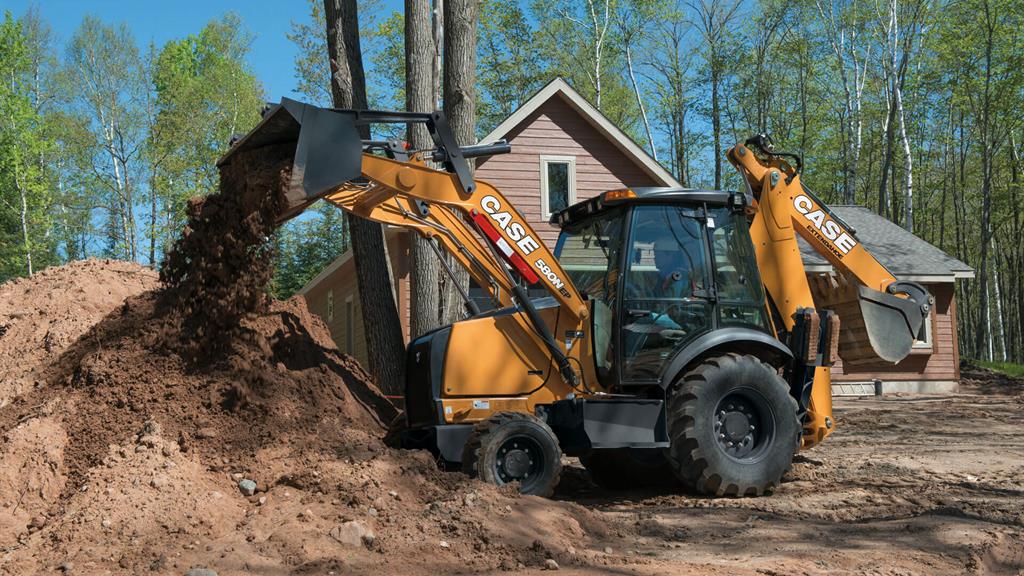

This efficient backhoe loader combines the quintessential features of our N Series and a Tier 4 Final solution that’s as simple as it gets – no diesel exhaust fluid to add, no particulate filter to maintain. That, combined with user-friendly controls, available 4WD and standard SiteWatch™ Telematics, makes the 580N EP easy for operators of any level and an ideal machine for the rental market. For the digging power of a light-duty excavator, the hauling capabilities of a wheel loader or the versatility of a skid steer, the 580N EP is where efficiency meets power.
Productivity
Productivity starts at the structure. A heavy-duty loader with long arms and in-line linkage makes truck loading easier, even with uneven loads. A revolutionary over-center design helps reduce “porposing” and, when combined with the optional Ride Control, provides a smoother ride that retains more material. A 74-hp FPT engine and standard Power Shuttle transmission provide reliable performance in any application and for loading or stockpiling tasks, Comfort Steer cuts turning in half so you can work faster with less effort.
The backhoe delivers nearly 3,000 lb. of lifting force and over 11,500 lb. of breakout, and with the ProControl anti-rebound option, provides responsive precision. Using competitive attachments? No problem. The backhoe has a universal coupler option and a factory-installed thumb is also available for added utility. And like all N Series machines, SiteWatch Telematics comes standard to track and manage machine performance and service needs.
Fuel Efficiency
The 580N EP uses a Diesel Oxidation Catalyst (DOC) to meet Tier 4 Final emissions standards. Good news for operators and owners looking to keep costs down – you get compliance that requires no extra work. No DEF (Diesel Exhaust Fluid) to add. No expensive DPF (Diesel Particulate Filter) to replace. No fuel-burning regeneration. Just fill up as normal, get in and get to work.
Comfort and Visibility
Available comfort features include climate control, hands-free Bluetooth radio with USB and an adjustable suspension seat with heat. Floor-to-ceiling cab windows and the low-profile hood provide excellent sightlines around the machine and because backhoes work all hours of the night, standard Easy-Flex cab lights give bright, overlapping fields of coverage and optional LED lights provide greater visibility with less power drain. Standard CASE foot-swing controls or available dual-lever mechanical “wobble sticks” provide a classic setup, or opt for infinitely adjustable pilot controls with intuitive fingertip functions, such as two-way hydraulic rocker switches.
Serviceability
The 580N EP wouldn’t be efficient without timesaving serviceability. Daily maintenance is a breeze thanks to grouped, ground-level service points. Swing-out coolers, a flip-up hood, spin-on filters and externally adjustable Extendahoe® wear pads make upkeep easier than ever. Standard battery disconnect and jumpstart terminals provide added security and convenient access, and with the DOC Tier 4 Final solution, there’s no DPF maintenance to worry about.
For more information, check out the 580N EP brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS certified protective canopy
- Rear fenders extensions
- Coat hook w/garment strap
- Interior rearview convex mirror
- Mechanical-suspension seat – 180° swivel – Vinyl
- 3 in (76 mm) retractable seat belt
- Cup holder/storage tray mounted on left-hand fender
- Right-hand storage compartment w/ lid
- Anti-vandalism dash cover
- Tilt steering wheel on cab models
- Gauges:
- Engine water temperature
- Converter oil temperature
- Fuel level
- Tachometer/hourmeter
- Voltmeter
- Warning lights:
- Air cleaner restriction
- Alternator
- A/C high pressure
- Cold start
- Engine oil pressure low
- Hydraulic oil filter bypass
- Parking brake engagement
- Low fuel
- Water in fuel
- Audible alarms:
- Coolant temperature
- Engine oil pressure
- Parking brake engagement
- Shuttle engagement/seat position
- Backup alarm
- Converter temperature
- Horn
- Dual switched front and rear
Warranty
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
Backhoe
- Over center design, Fabricated “S” boom
- Pro Control Swing dampening
- Cleated dirt stabilizer pads
Loader
- Bucket position indicator
- Lifting lugs and tie downs on standard bucket
- Single lever control with self-leveling and return-to-dig
- Hand operated clutch disconnects on loader and shift levers, single lever 4-function loader control: lift, dump, clutch cut-out, differential lock
Engine
- FPT F5HFL463D diesel
- Full flow engine oil filter
- Aspirated air cleaner – replaceable dual element dry type with radial seal
- Fuel filter with water trap
- Diesel Oxidation Catalyst
- Radiator with de-aeration bottle
- Antifreeze to -34° F (-37° C)
- Throttles, both hand rotary and foot
- Self adjusting belt
- High Pressure Common Rail
Drivetrain
- Front axle, as selected:
- 2WD front axle with 11.0 L x 16.0 tires
- 4WD mechanically driven front axle, with 12.0 L x 16.5 tires
- Rear axle:
- 2/4WD heavy-duty outboard planetary drive, with 19.5 L x 24.0 tires
- 4F-4R Power Shuttle
- Synchromesh transmission
- Torque converter – 11.8 in (300 mm)
- On-the-go electric 4WD control
- Electric F/R shuttle control
- Electric differential lock control, with push-button activation on the loader control lever
- Park brake, spring-applied, hydraulic release – SAHR
- Drive shaft guard – 4WD models
Hydraulics
- Pump:
- 28.5 gal/min @ 3,350 psi (107.9 L/min @ 231 bar)
- Heavy-duty hydraulic oil cooler
- 7-micron, spin on oil filter
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Other
- Forward tilt engine hood
- Replaceable, molded front bumpers
- Front/Rear tie downs
- Reflective logos
- Working/Driving/Signal Lights – halogen:
- Canopy:
- 2 headlights – clear / white
- 2 rear flood lights – clear / white
- 2 front flashers / turn signals – amber
- 2 rear flashers/turn signals – amber
- 2 rear tail/stop lights – red
- Cab:
- 4 headlights – clear / white
- 4 rear flood lights – clear / white
- 2 side lights – clear / white
- 2 front flashers / turn signals – amber
- 2 rear flashers / turn signals – amber
- 2 rear tail / stop lights – red
- Canopy:
- Master disconnect switch and remote jump-start terminals
- Hydrostatic steering
- Backup alarm
- Vertical spin-on engine oil, fuel and hydraulic filters
Optional Equipment
Backhoe
- 1-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments
- 1-way/2-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments or switch to 2-way flow for thumbs, augers or similar 2-way flow attachments
- Extendahoe®
- Two-lever backhoe controls
- Pilot operated control system:
- Fingertip proportional Electro-Hydraulic stabilizer controls
- Thumb-operated proportional
- Electro-Hydraulic Extendahoe®
- Thumb-operated auxiliary hydraulic contro
- Infinitely adjustable towers
- In-cab switchable “excavator to backhoe” control pattern change
- Flip over stabilizer pads
- Case mechanical quick coupler
- Universal coupler – CAT/Deere compatible
- Buckets
- Hydraulic thumb – Includes: 2 replaceable, high strength, bolt on tines with two positions for Universal or Hi-Cap buckets – meshes with Bucket teeth on 18 in & 24 in Buckets
Other
- Front tires:
- 11.0 L x 16.0 10-ply or 12.0 L x 16.5 10-ply
- Rear tires:
- 500/70 R24 Michelin XMCL Radial Tires
- Special paint
- LED Working/Driving Light Package:
- 4 front
- 4 rear
- 2 side
- Front Fenders
- Special Feature Request
Operator Environment
- ROPS/FOPS certified protective cab available in LH Door with heat, A/C, defroster, door activated dome light, 4 front, 4 rear and 2 adjustable side lights, floor mat, tinted glass, bluetooth radio, front and rear wiper and fender extensions
- Mechanical suspension seat with flip-up armrests, 180° swivel, adjustable seat and weight, backrest angle, lumbar and cushion angle – cab units cloth or vinyl, canopy units vinyl only
Engine
- Cold Weather Starting Aid:
- Dual 12 volt batteries, glow plugs, engine block heater and heated CCV hose
- Severe Cold Weather Starting Aid:
- Synthetic transmission, hydraulic and engine oil – order with cold weather starting aid
Loader
- Auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control
- Hydraulic front quick coupler
- Tool portfolio of additional attachments
- Buckets
