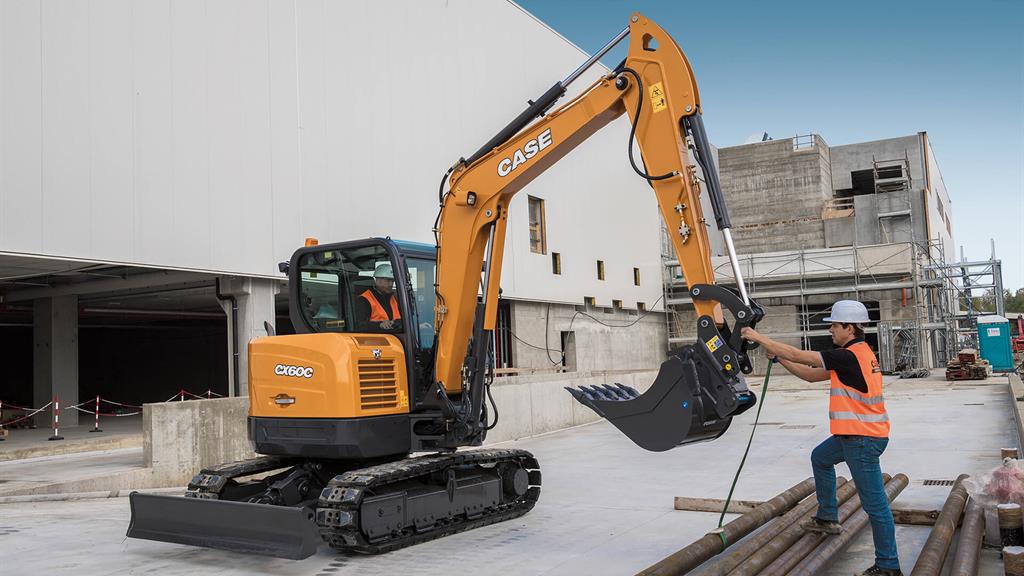

The Tier 4 Final CX60C is the largest mini excavator CASE has ever produced. Weighing in at six metric tons and with industry leading horsepower, it features a short radius tailswing design and adjustable boom that allow it to work in close quarters while providing digging forces of nearly 9,200 lb. Quick, responsive hydraulics, deluxe cab comfort and standard high-performance features make this mini an extremely capable addition to any construction environment.
Productivity
In addition to the compact power that the CX60C provides, the C Series provides more features and functions that drive productivity than any previous CASE mini excavators. Models come standard with an adjustable boom that can be offset to either side for operation in tight sites, auxiliary hydraulics for thumb and attachment versatility, a push blade for backfilling and stability in digging applications, Automatic 2-Speed Travel that shifts in response to load demands, and a control pattern selector that lets operators choose the style they prefer. Additional options include a long reach configuration with a larger counterweight, steel tracks for improved durability on rocky or aggressive terrain and a hydraulic quick coupler.
Fuel Efficiency
Providing excellent power and performance with minimal fuel use, the CX60C features an efficient 65-hp engine and an innovative combination of Tier 4 Final solutions, as well as a standard Auto-Idle function and two separate operating modes that help match engine output to application demands.
Comfort and Visibility
The standard deluxe cab of the CX60C is the most advanced, comfortable and productive cab ever found on a CASE mini excavator. It features a spacious design, ample storage, floor-to-ceiling glass and full-open front window for excellent visibility, an adjustable heated seat, climate control, roller shade, and Bluetooth radio with USB input and remote. Ergonomic pilot controls reduce operator effort and the standard 7″ LCD touchscreen ensures performance data and important functions are easily accessible. The monitor can also be integrated with the optional rearview camera for improved awareness.
Serviceability
CASE is committed to making maintenance easy so that owners and operators are more likely and more easily able to properly care for their machine. Like all C Series mini excavators, the CX60C has key service items (fills, filters, gauges, grease points, etc.) accessible from the ground via two lockable panels. The CX60C also features a tilting cab for improved access to hydraulic systems.
For more information, check out the CX60C brochure.
Standard Equipment
Operator Environment
- Enclosed cab w/heat and air conditioning
- ISO 6396:2008 sound pressure level LpA=77bB (A)
- Pilot operated hand controls and foot pedals
- Adjustable seat w/seat belt and seat heater
- Arm rests
- 12V socket
- 5.7 in color LCD display
- Cup holder
- Cell phone holder
- Bluetooth radio with USB input, 2 speakers and remote control
- Display includes:
- Hydraulic oil temp warning lamp
- Air cleaner warning lamp
- Engine stop warning lamp
- Check engine warning lamp
- Water in fuel warning lamp
- Battery charging warning lamp
- Emergency warning lamp
- Engine coolant temp warning lamp
- Engine oil pressure warning lamp
- DPF regeneration inhibit warning lamp
- DPF regeneration acknowledge warning lamp
- DPF warning lamp
- High Exhaust Temperature warning lamp
- Low fuel level warning lamp
- Engine coolant temperature gauge
- Hydraulic oil temperature guage
- Fuel gauge
- Engine RPM
- Hour meter
Electrical
- 12-volt electrical starting system
- Heavy-duty battery
- Battery Master Switch
- Key Start
- Anti-Theft-Engine starting passwords
- Front and rear working light
- 12 V power outlet
- Auto-idle feature with on/off switch
- Horn
- Pre-wired – Telematics ready
Engine
- Yanmar 4TNV98C
- Engine access under rear hood
- Glow plug starting aid
- Dry type air cleaner with restriction indicator
Upper Structure
- Short radius tail swing
- Standard arm: 4 ft 10 in (1.48 m)
- Bucket linkage with lifting hook
- Thumb bracket
Hydraulics
- Auxiliary hydraulics – independent single and bi-directional – and plumbing to arm
- Large hydraulic oil cooler
- Control pattern selector valve
- Cylinder rod protection covers – Boom
Track Drive
- Rubber tracks
- Automatic 2-speed travel
- Fully hydrostatic drive system
- Sealed and lubricated track rollers
- Track tension adjustment – grease type
Other
- Swing boom – 70° left /50° right
- Hydraulic backfill blade
Warranty
- Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
Optional Equipment
Other
- Additional counterweight: 440 lb (200 kg)
- Optional long arm: 6 ft 3 in (1.9 m)
- Hydraulic quick coupler provision
- Hydraulic coupler
- Klac coupler
- Mechanical coupler
- Hydraulic hammer
- Beacon
- 2nd auxiliary circuit
Operator Environment
- Rearview camera
- Travel alarm
Track Options
- Tracks:
- Steel tracks 1 ft 3 in (380 mm)
- Steel tracks 1 ft 6 in (450 mm)
- Steel tracks with bolt on Rubber Pads 1 ft 4 in (400 mm)
- Roadliner tracks – steel chain with rubber grousers/shoes 1 ft 4 in (400 mm)
- Rubber belt tracks 1 ft 4 in (400 mm)
- Track guides for steel tracks and steel tracks with bolt on rubber track pads only: 3-piece
