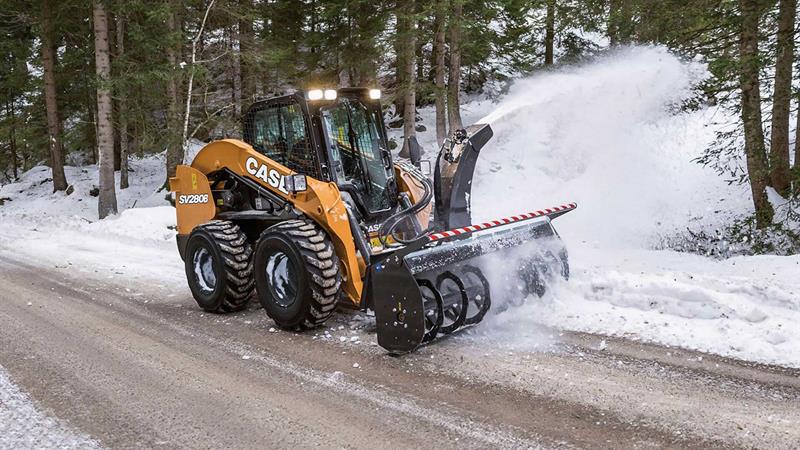

The SV280B offers large-frame power and performance with the efficiency of a medium-frame machine. Industry-leading visibility and an all-new and intuitive operator interface with 8-inch LCD multifunction display improves overall performance, and the 74-horsepower machine features standard (3,050 psi and 24.2 gpm) and high-flow (3,050 psi and 37.6 gpm) auxiliary hydraulics — all while retaining a maintenance-free Tier 4 Final emissions solution that requires no fluids or filter replacement.
Visibility and Comfort
CASE skid steers feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. Each model features one of the industry’s widest cabs, and new control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
Optimal Control
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. New electro-hydraulic models with the all-new 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
Productivity and Performance
The vertical lift SV185B offers 1,850-pounds rated operating capacity (1,950 pounds with optional counterweights), 60 horsepower, and standard and high-flow auxiliary hydraulics tackling a variety of applications in a simple and efficient machine. Optional electro-hydraulic controls and a new 8-inch LCD multi-function display further allow operators to get more out of a compact-yet-powerful platform.
Ease of Ownership
All critical checks and service points are grouped at the rear of the machine for easy access, and the all-new 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. At 74 horsepower, the SV280B features a maintenance-free Tier 4 Final emissions solution that requires no fluids and no lifetime filter service or replacement (no diesel particulate filter (DPF).
For more information, check out the SR280B brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS Level 1 canopy w/ side screens
- Keyed start ignition
- Tilt ROPS/FOPS
- Rear window w/ emergency escape
- Deluxe cloth, air suspension seat, w/ 2 in (51 mm) retractable 3 point lap seat belt, w/ heater and lumbar support
- Hand and foot throttle
- Alarm package – back-up and horn
- Rearview mirror
- Headliner
- Dome Light
- Top window
- Cup holder
- 12V Power plug socket
- Foot rest
- Seat Pocket
- Padded seat bar w/ integral armrests
- Loader control lockout system
- Electric parking brake control
- Operator’s compartment floor cleanout
- Proportional auxiliary hydraulic control – on joystick
- Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout.
- Warning lights with alarms:Engine coolant temperature
- Engine oil pressure
- Engine malfunction
- Hydraulic charge pressure
- Hydraulic filter restriction
- Hydraulic oil temperature:Critical system stop
- Engine system
- Hydraulic system
- Electrical and diagnostic system
- Warning alarms:Battery voltage – plus display
- Oil service
- Indicator light:Engine preheat
- Parking brake
- Seat bar reminder
Loader
- Auxiliary front electric control
- Heavy duty hydraulic attachment coupler
- Vertical lift geometry
- Loader lift arm support strut
- In-cab loader lock
Tires
- 12 X 16.5 Heavy duty
Engine
- F5H FL463 A*G001 diesel
- 207 CID (3.4 L) Turbo
- Tier 4 Final Certified
- Particulate Matter Catalyst
- Charged Air Cooler (CAC)
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower:Gross: 74 hp (55 kW)
- Net: 68 hp (51 kW)
- Peak torque: 232 lb·ft (314 N·m)
- 120 amp alternator
- Dual element air cooler
- Organic Acid Technology (OAT)
- Anti-freeze solution to -34º F
- Fuel tank – 25.5 gal (U.S.)
- Over and under radiator and oil cooler
- 3-stack after cooler/radiator/oil cooler configuration
- Glow plugs
- Integral engine oil cooler
- Fuel filter with water trap
- 925 CCA 12V battery
- Master electrical disconnect
Drivetrain
- 2-speed hydrostatic four wheel drive
- ASA #100HS drive chain
- SAHR disc parking brake
Hydraulics
- Auxiliary hydraulics:@ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
- 6 micron oil filtration system
- 3-spool loader control valve
- Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
- Hydraulic circuit pedal lock
- Auxiliary function lockout override
- Loader lift lockout override
- Heavy-duty hydraulic oil cooler
- Loader arm float position
- Loader function lockout system
Other Standard Features
- Halogen lights – 2 front, 2 side, 2 rear flood
- Pre-wired for rotating beacon
- Lockable service access hood
- Single-point daily service
- Rear tail lights
- Remote oil drain
- Remote oil and fuel filters
- Block heater
- Debris ingression sealing
- Mounting points for add-on counterweights
Optional Equipment
Hydraulics
- High-flow auxiliary hydraulics – combined:@ 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min)
- Second auxiliary hydraulics
- Hydraulic one-way self-leveling
- Ride control
Loader
- Hydraulic attachment coupler
Drivetrain
- Creep Speed Mode
Other
- Language decals
- Buckets
- Bolt-on bucket cutting edges
- Special paint
- Offsite service arrangement
- Telematics
Service Parts
- 3 inch (76.2 mm) retractable seat belt
- Bolt-on heavy-duty bucket teeth
Operator Environment
- Enclosed cab:Fully sealed and pressurized – FSP
- Glass door with wiper and washer
- Sliding side windows – removable
- Heater and air conditioner
- AM/FM Bluetooth radio with 2 speakers
- Keyless start ignition
- 8 in Color LCD Display
- Economy Mode (auto idle shutdown)
- Auto Engine Protection Shutdown
- Electro-hydraulic controls:For drive/steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
- Mechanical hand controls
- Hand and foot controls:Hand controls the loader drive function and foot controls the bucket and boom
- Non suspension seat
- Suspension Seat, vinyl with 2 in (51 mm) retractable lap seat belt
- Demolition cab door with polycarbonate
- FOPS level 2
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
Factory Supplied Attachments
- Add-on counterweights
- Road lights
- Rotating beacon
- Four-corner LED strobe
