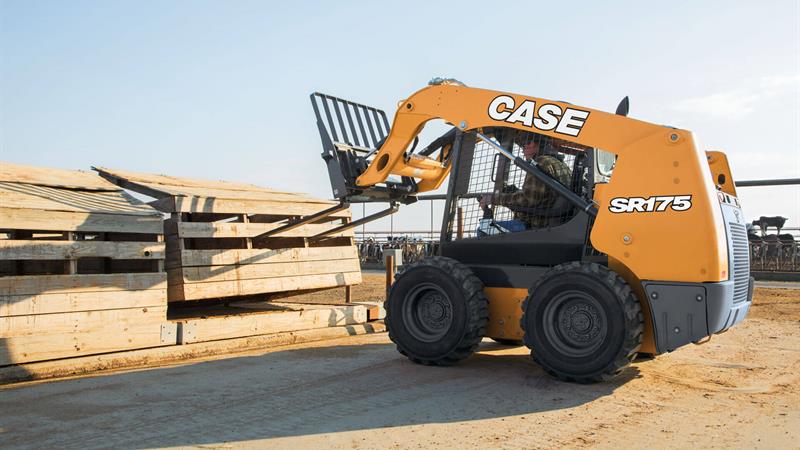

The SR175B packs a lot of performance into a compact footprint and provides owners with a simple and intuitive platform for dirt work and material handling. It’s easy to own, operate and maintain. Optional counterweights further increase rated operating capacity (up to 1,850 pounds) for even greater lifting and carrying performance.
Visibility and Comfort
CASE skid steers feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. Each model features one of the industry’s widest cabs, and new control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
Optimal Control
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. New electro-hydraulic models with the all-new 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
Productivity and Performance
At 1,750-pounds rated operating capacity and 67 horsepower, the radial lift SR175B is ideal for light- to medium-duty applications where basic earthmoving, loading and attachment operations are required. Standard (3,050 psi and 20.6 gpm) and optional high-flow (3,050 psi at 30.7 gpm) auxiliary hydraulics make it excellent for a broad range of attachments and applications.
Ease of Ownership
All critical checks and service points are grouped at the rear of the machine for easy access, and the all-new 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance.
For more information, check out the SR175B brochure.
Standard Equipment
Operator Environment
- ROPS / FOPS Level 1 canopy w/ side screens
- Keyed start ignition
- Tilt ROPS / FOPS
- Rear window w/ emergency escape
- Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
- Hand and foot throttle
- Alarm package – back-up and horn
- Rearview mirror
- Headliner
- Dome Light
- Top window
- Cup holder
- 12V Power plug socket
- Foot rest
- Seat pocket
- Padded seat bar w/ integral armrests
- Loader control lockout system
- Electric parking brake control
- Operator’s compartment floor cleanout
- Proportional auxiliary hydraulic control – on joystick
- Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout
- Warning lights with alarms:Engine coolant temperature
- Engine oil pressure
- Engine malfunction
- Hydraulic charge pressure
- Hydraulic filter restriction
- Hydraulic oil temperature:Critical system stop
- Engine system
- Hydraulic system
- Electrical and diagnostic system
- Warning alarms:Battery voltage – plus display
- Oil service
- Indicator light:Engine preheat
- Parking brake
- Seat bar reminder
Loader
- Auxiliary front electric control
- Manual attachment coupler
- Radial lift geometry
- Loader lift arm support strut
Tires
- 10 X 16.5 Heavy duty
Engine
- Perkins 404F-E22TA
- 135.2 CID (2.2 L) Turbo
- Tier 4 Final Certified (CEGR, DOC, DPF)
- Spark Arresting Diesel Oxidation Catalyst (DOC) muffler
- Charged Air Cooler (CAC)
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower:Gross: 67 hp (50.0 kW)
- Net: 64 hp (47.7 kW)
- Peak torque: 153 lb·ft (208 N·m)
- 120 amp alternator
- Dual element air cleaner
- Organic Acid Technology (OAT)
- Anti-freeze solution to -34º F
- Fuel tank – 20 gal (U.S.)
- Over and under radiator and oil cooler
- 3-stack after cooler / radiator / oil cooler configuration
- Glow plugs
- Integral engine oil cooler
- Fuel filter with water trap
- 925 CCA 12V battery
- Master electrical disconnect
Drivetrain
- 2-speed hydrostatic four wheel drive
- ASA #80 drive chain
- SAHR disc parking brake
Hydraulics
- Auxiliary hydraulics:@ 3,050 psi (210 bar) – 20.6 gpm (78.0 L/min)
- 6 micron oil filtration system
- 3-spool loader control valve
- Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
- Hydraulic circuit pedal lock
- Auxiliary function lockout override
- Loader lift lockout override
- Heavy-duty hydraulic oil cooler
- Loader arm float position
- Loader function lockout system
Other Standard Features
- Halogen lights – 2 front, 2 side, 2 rear flood
- Pre-wired for rotating beacon
- Lockable service access hood
- Single-point daily service
- Rear tail lights
- Remote oil drain
- Remote oil and fuel filters
- Block heater
- Debris ingression sealing
- Mounting points for add-on counterweights
Optional Equipment
Hydraulics
- High-flow auxiliary hydraulics – combined:@ 3,050 psi (210 bar) – 30.7 gpm (116.2 L/min)
- Second auxiliary hydraulics
- Hydraulic one-way self-leveling
- Ride control
- Auto Ride Control
Loader
- Hydraulic attachment coupler
Drivetrain
- Creep Speed Mode
Service Parts
- 3 inch (76.2 mm) retractable seat belt
- Bolt-on heavy-duty bucket teeth
- Second auxiliary hydraulics
- Add-on counterweights
- Road lights
- Four-corner LED strobe
- Fire Extinguisher
- Tamper Resistant Front Door Bracket
- Bucket Cylinder Guards
- Single Point Lift Hook
- FOPS level 2
- Aspirator
- Attachment Hose Guide Kit
- Drawbar
Operator Environment
- Enclosed cab:Fully sealed and pressurized – FSP
- Glass door with wiper and washer
- Sliding side windows – removable
- Heater and air conditioner
- AM / FM Bluetooth radio with 2 speakers
- Keyless start ignition
- 8 in Color LCD Display
- Economy Mode (auto idle shutdown)
- Auto Engine Protection Shutdown
- Electro-hydraulic controls:For drive / steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
- Mechanical hand controls
- Hand and foot controls:Hand controls the loader drive function and foot controls the bucket and boom
- Deluxe cloth, air suspension seat, with heater and lumbar support
- Demolition cab door with polycarbonate
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
Other
- Language decals
- Buckets
- Bolt-on bucket cutting edges
- Special paint
- CASE SiteWatch™ Telematics
- Rotating beacon
- 4 Point Lift Hook
