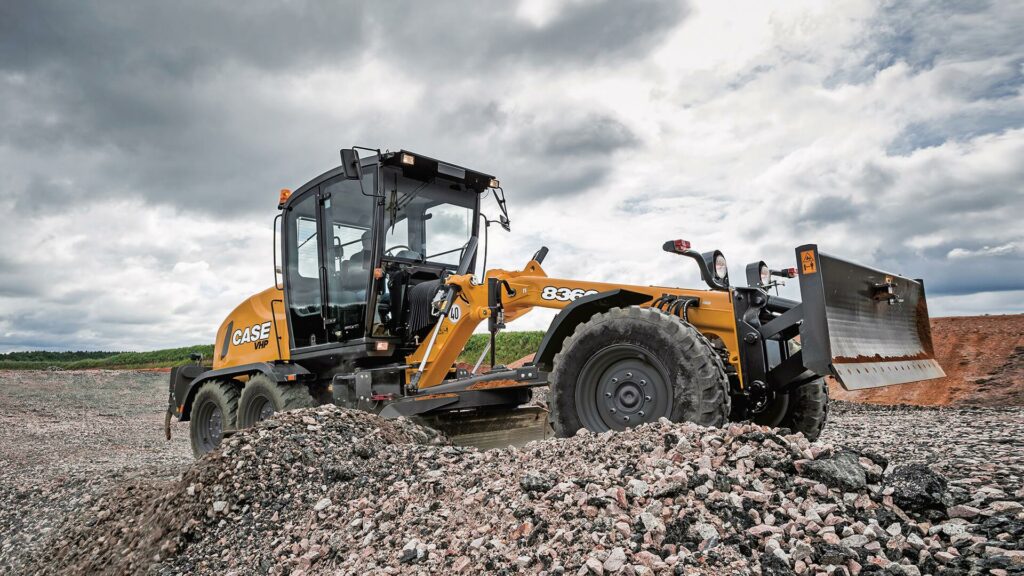

At 24,466 lbs., the Tier 4 Final CASE 836C motor grader offers an ideal fit for small-to-mid-size grading applications such as residential site prep, snow removal and municipality work. Standard high-performance features and direct-mounted hydraulic controls that give operators a more responsive feel results in greater accuracy, smooth operation and less rework. And best yet, C Series graders come with the product assurance of CASE ProCare, giving owners three years of predictable costs and peace-of-mind.
Productivity
The 836C motor grader includes several innovative features to simplify operation so operators can stay focused on accuracy and jobsite safety. An Ergopower transmission and torque converter provide smooth, automatic shifting, and a hydraulic differential lock with auto power splitting automatically transfers torque from slipping tires to gripping ones.
C Series graders also feature an exclusive, heavy-duty A-frame drawbar design for superior stability and a hydraulically controlled, 5-position saddle. The high-carbon steel moldboard pitches, tilts and moves laterally, and sits on a sliding mount for adaptable positioning. Additional performance options include moldboard float, moldboard extensions, front dozer blade, rear ripper and a precision-ready setup that fits any major machine control supplier.
Fuel Efficiency
Emissions requirements are met through an innovative combination of FPT catalyst and filter solutions, and an Automatic Catalyst Management (ACM) system that requires no operator input and will not affect vehicle performance — all emissions management actions take place in the background.
Comfort and Visibility
The standard ROPS/FOPS cab includes a heated air-ride seat, AM/FM radio, adjustable operator’s console and ergonomic controls. The cab’s rear-mounted design, wide floor-to-ceiling windows and external mirrors provide superior sightlines to the moldboard and surrounding area while tinted safety glass and sunshields (front and rear) help moderate cab temp and block UV rays. A rearview camera with 7-inch LCD monitor and an advanced lighting package are also available to further improve jobsite visibility.
Serviceability
With the quick pull of a lever, the engine hood hydraulically lifts up providing unobstructed catwalk access to filters and key engine components. All maintenance checkpoints are located at ground or fender level to make daily maintenance as straightforward as possible and with the optional automatic lubrication system, it’s even easier to properly maintain your investment. Plus, with ProCare included, owners have the peace-of-mind of SiteWatch™ Telematics and predictable maintenance costs for up to three years.
For more information, check out the 836C brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS cab – SAE J231, ISO 3449
- Cab equipped w/ two fully swinging doors for both side access, tinted safety glasses, front and rear sunshield, openable front windows
- Adjustable operator’s console – includes hydraulic control levers, steering wheel, indicator lights
- Air suspension seat w/ 3 in (76 mm) retractable seat belt and movable armrests
- Dome light
- Inside rearview mirror
- Outside rearview mirrors
- Cup holder
- Storage tray
- 12-volt outlet
- Radio ready – 12 Volt
- Electrical master switch – automatic
- Heater/defroster/pressurizer
- Sound suppression
- Delphi AM/FM Radio w/ CD
- Steps – left/right
- Windshield wiper – front
- Windshield washer – front
- Coat hook
- Storage box left and right
- Throttle hand lever
Drive Train
- Hydraulic differential lock
- Immobilization disc brake on transmission
- Powershift transmission with 6 Foward and 3 Reverse speeds with integrated torque converter
- Hydraulic dual circuit brake system
- Hydrostatic front wheel drive D.C.V.
- Electronic Drove Control Volume and hydraulic differential – FWD version only
- Internal gearing:
- Covered, Backlash-free and maintenance free slewing ring operation on 360°
- Hydrostatic power steering
- Circle drive without overload clutch
- Rear axle with automatic/manual gear shifting
- Transmission with automatic/manual gear shifting
Electrical
- 2 – Heavy-duty batteries – 1010 CCA
- Battery main switch
- Electronic Systems Monitor
- Horn
- Alternator – 90 amp
- Headlights
- 2 – Turn signals front
- 2 – Tail lights with turn signals, brake lights
- Flood lights – cab mounted
Other
- Front counterweight
- Rear counterweight
- Front fender with hinged mudflaps
- Rear fender
- Wheel chocks x 2
- Standard tooling
- Drive Shaft Maintenance Free
- Rear Ripper Maintenance Free
- Dozer Maintenance Free
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Engine
- F4HFE6133*B003 NEF 6 cyl. CR TAA 4V turbocharged diesel
- Tier 4 Final Certified
- Temperature controlled cooling fan
- SCR only exaust gas after-treatment
- Charge air cooler
- Air intake grid heater
- Common rail electronic fuel injection
- Hydraulic driven cooling fan
- Auto idle
- Cold start up to -19°C
- Air cleaner/pre-cleaner with scavange line and safety element
- Variable fan speed
Hydraulics
- Closed center, load sensing hydraulic system
- Controls for all functions
- 10 section control valve
- Hydraulic moldboard side shift and pitch
- 5-position saddle
- 11 ft x 20.7 in (3 355 x 526 mm) moldboard
- 8 hydraulic diagnostic quick couplers
- Front and rear piping for hydraulic attachment
- Moldboard support no scarifier
- Oscillating front axle with hydraulic lean adjustment
- Oscillating tandem axle with automatic no-spin differential
- Hydraulic circle turn – 360°
- Hydraulic system lock valves for blade lift, blade shift, front wheel lean, blade pitch, articulation and special equipment, scarifier – optional, and rear ripper – optional
- Lock valve lift cylinder blade
Tires
- 405/70 R20 SPT9 Dunlop
Instruments
- Analog displays/Gauges:
- Fuel level
- Engine coolant temperature
- Transmission oil temperature
- Hydraulic oil temperature
- Monitor Functions:
- Hour meter; Automatic trans indication; DEF/Ad blue level indication; Floating – if activated; FWD aggressive mode; Error prompt; Park brake message; Clutch engagement status; Vehicle moving – yes/no; Engine speed; Travel speed; Current gear selection; FNR indication; Clock; Trip computer; Fuel consumption; Fuel level percentage; Oil pressure; Coolant temperature; Engine oil temperature; Transmission oil temperature; Hydraulic oil temperature; Turbocharger air temperature; Differential lock indicator; Gear selection indicator; Engine diagnostics; Transmission diagnostics; Keypad diagnostics; UCM diagnostics; Speed limit module; Support for different severities – White/Yellow/Red; System voltage; Error reporting; Warning prompts; Indicator warning lamps – main warning, parking brake, low brake pressure, low steering pressure, Pre-glow, high beams, turn signals, hazard lights, low fuel.
Optional Equipment
Hydraulics
- Rear ripper hydraulic predisposition
- Environment friendly hydraulic oil panolin
Moldboards
- 8 ft x 20.7 in (2 440 x 526 mm), single radius curve
- 10 ft x 20.7 in (3 050 x 526 mm), single radius curve
- Extensions – 2 ft (610 mm)
- Front Float Control
- Moldboard Float Control – Hydraforce/HF22484-03
- Lift cylinder/side shift accumulators
- Lift cylinder accumulators
- Moldboard with overload clutch
- Moldboard side plates left /right
Tires
- 420/75 R20 XMCL TL Michelin
- 455/70 R20 SPT9 Dunlop
- 405/70 R24 SPT9 Dunlop
Other
- Bidirectional engine cooling fan
- Cold weather package
- Fire extinguisher
- Strobe light
- Tool box – without tools
- Deluxe tool box – with tools
- Tire inflator kit
- Spare wheel
- Spare wheel support
- Slow moving vehicle sign
- Rear pull hook
- Equipment on road
- On road approval
- Speed Limitation 20 km/h
- Speed Limitation 25 km/h
Operator Environment
- Front windows openable with rear window defroster
- Lower front wiper/washers
- Rear windshield washer
- Air conditioning
- Low Profile Cab
- Radio
- Air suspension seat, heated, moveable arm rests
Electrical
- 2 – Front mounted working lights
- 2 – Floodlights at moldboard
- 2 – Floodlights at articulation
- 2 – Floodlights rear
- Snow wing lighting package
- Backup alarm
- Beacon
Attachments
- Front pull hook
- Front counterweight – 1,124 lb (510 kg)
- Rear counterweight – 330.7 lb (150 kg)
- Front dozer blade
- Moldboard scarifier
- Moldboard ripper
- Front push plate
- Front support and lift cylinder
- Rear ripper with 3 or 5 teeth with or without protective device
