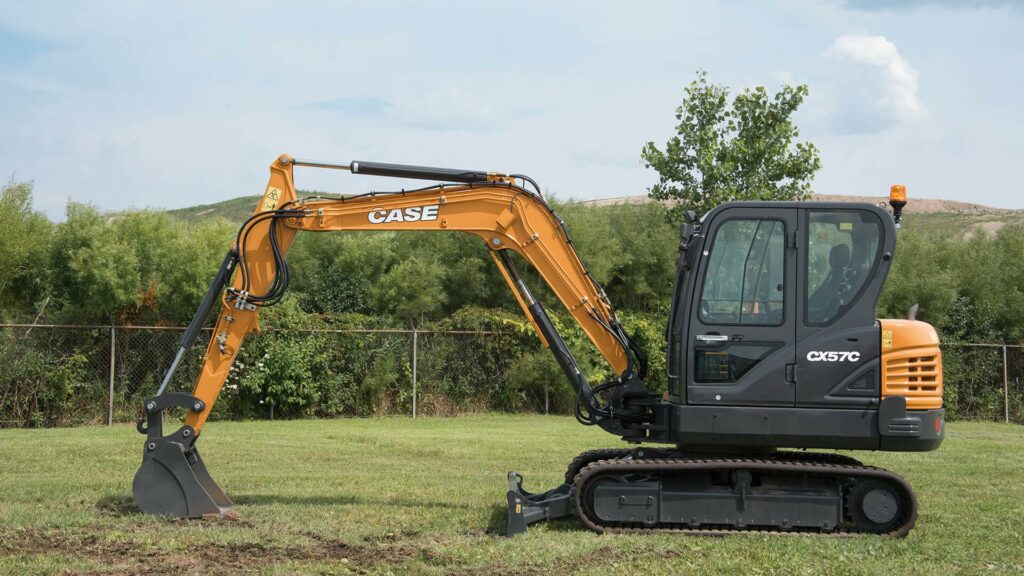

CX57C is a “large” mini excavator with industry leading horsepower, capable of handling the demands of heavier excavation operations. Its design stands apart from the rest of the C Series line because it features a conventional tailswing design with a large counterweight, giving it power and performance comparable to a larger class – all while still taking up a relatively small footprint. Standard performance features and a standard deluxe cab with a 7” LCD touch screen monitor make the CX57C a powerful, versatile and intuitive mini excavator.
Productivity
The best-in-class 67 hp. and larger counterweight empower the CX57C to deliver digging forces of 9,550 lbf. and a lifting capacity of more than 9,200 lb. while still maintaining a track width of 6 ft. 4 in. and operating weight of 12,270 lb. This small-frame strength is supported with standard features such as a hydraulic push blade for backfilling and improved stability, auxiliary hydraulics for easy thumb and attachment use, Automatic 2-Speed Travel for smoother shifting across varying terrain, and a pattern selector for simple switching between SAE or ISO controls. The adjustable boom can be offset to the left or right, allowing for nimble operation in confined applications or around obstacles. Optional features include a long-reach configuration and steel tracks for greater durability and performance in harsh underfoot conditions.
Fuel Efficiency
Contractors count on the CX57C for its compact power. This is why it utilizes a combination of emission technologies to meet Tier 4 Final regulations, resulting in a fuel-efficient design without sacrificing strength. Two operating modes help operators efficiently dial in performance to the task at hand and a standard Auto-Idle function further reduces fuel use.
Comfort and Visibility
Despite its “mini” classification, the CX57C comes standard with a deluxe cab offering the productive comfort and features of many full-size machines. The isolation mounted cab helps seal out noise and reduce vibration, features floor-to-ceiling glass for excellent all-around visibility, and standard amenities include heat, A/C, Bluetooth radio with USB input and remote, proportional controls, an adjustable heated seat, and a 7″ color touchscreen monitor. This monitor provides quick visual reference of real-time performance data, convenient access to important functions and can be integrated with the optional rearview camera.
Serviceability
Two self-locking panels provide ground-level access to all main service and maintenance items, including checkpoints, fill ports, grease points, filters and more. This allows you to quickly and
For more information, check out the CX57C brochure.
Standard Equipment
Operator Environment
- Enclosed cab w/heat and air conditioning
- ISO 6396:2008 sound pressure level LpA=76bB (A)
- Pilot operated hand controls and foot pedals
- Adjustable seat w/seat belt and seat heater
- Arm rests
- 12V socket
- 5.7 in color LCD display
- Cup holder
- Cell phone holder
- Bluetooth radio with USB input, 2 speakers and remote control
- Display includes:
- Hydraulic oil temp warning lamp
- Air cleaner warning lamp
- Engine stop warning lamp
- Check engine warning lamp
- Water in fuel warning lamp
- Battery charging warning lamp
- Emergency warning lamp
- Engine coolant temp warning lamp
- Engine oil pressure warning lamp
- DPF regeneration inhibit warning lamp
- DPF regeneration acknowledge warning lamp
- DPF warning lamp
- High Exhaust Temperature warning lamp
- Low fuel level warning lamp
- Engine coolant temperature gauge
- Hydraulic oil temperature guage
- Fuel gauge
- Engine RPM
- Hour meter
Electrical
- 12-volt electrical starting system
- Heavy-duty battery
- Battery Master Switch
- Key Start
- Anti-Theft-Engine starting passwords
- Front and rear working lights
- 12 V power outlet
- Auto-idle deature with on/off switch
- Horn
- Pre-wired – Telematics ready
Track Drive
- Rubber tracks
- Automatic 2-speed travel
- Fully hydrostatic drive system
- Sealed and lubricated track rollers
- Track tension adjustment – grease type
Engine
- Yanmar 4TNV98C
- Engine access under rear hood
- Glow plug starting aid
- Dry type air cleaner with restriction indicator
Upper Structure
- Conventional radius tail swing
- Standard arm: 5 ft 3 in (1.6 m)
- Heavy counterweight: 220 lb (100 kg) heavier than standard weight
- Bucket linkage with lifting hook
- Thumb bracket
Hydraulics
- Auxiliary hydraulics – independent single and bi-directional – and plumbing to arm
- Large hydraulic oil cooler
- Control pattern selector valve
- Cylinder rod protection covers – Boom
Other
- Swing boom – 80° left /50° right
- Hydraulic backfill blade
Warranty
- Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
Optional Equipment
Other
- Optional long arm: 6 ft 3 in (1.9 m)
- Hydraulic quick coupler provision
- Klac coupler
- Mechanical coupler
- Hydraulic hammer
- Beacon
- 2nd auxiliary circuit
- Hydraulic coupler
Operator Environment
- Rearview camera
- Travel alarm
Track Options
- Tracks:
- Steel tracks 1 ft 3 in (380 mm)
- Steel tracks 1 ft 6 in (450 mm)
- Steel tracks with bolt on Rubber Pads 1 ft 4 in (400 mm)
- Roadliner tracks – steel chain with rubber grousers/shoes 1 ft 4 in (400 mm)
- Rubber belt tracks 1 ft 4 in (400 mm)
- Track guides for steel tracks and steel tracks with bolt on rubber track pads only:
- Full
- 3-piece
