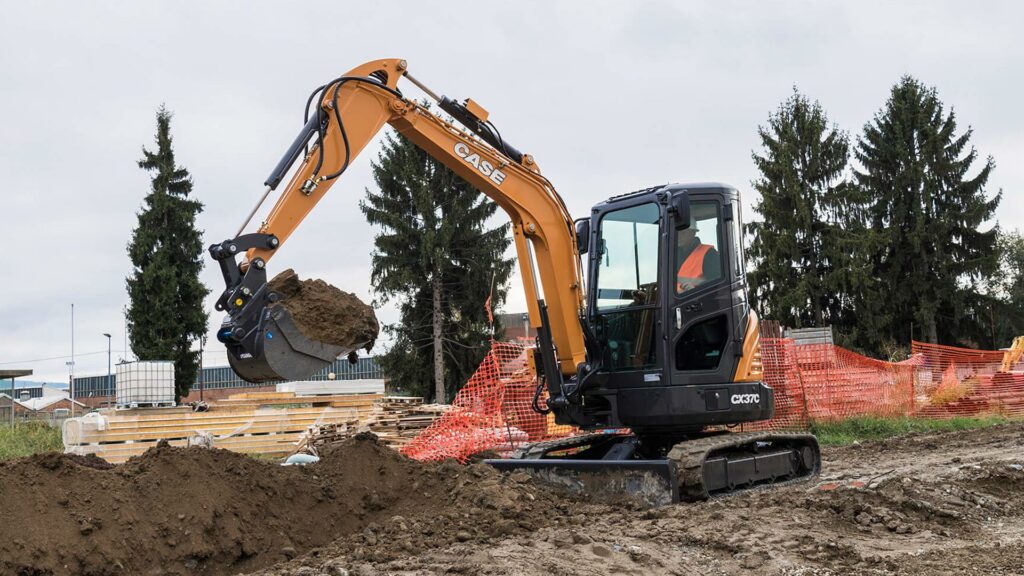

The CX37C provides excellent value and performance in a compact footprint. With bucket forces of 6,900 lbf., a dig depth of 10 ft. 3 in. and an operating weight of 7,990 lb., it delivers the greatest power and performance of any CASE mini excavator that can be towed behind a 1/2-ton pickup truck*. An adjustable boom and zero tailswing design allow for work in confined applications, and standard features such as auxiliary hydraulics and backfill blade (or optional angled blade) help owners get the most out of their investment.
Productivity
The standard backfill blade, auxiliary hydraulics, proportional controls and Automatic 2-Speed Travel system, along with a nimble design, makes the CX37C a powerful multi-use platform ready for use with a wide variety of attachments. Its adjustable boom can be offset to the left or right and with a zero tailswing design, the counterweight won’t protrude over the tracks, making this compact excavator ideal for working in residential construction applications or alongside structures. An optional long-reach configuration, thumb bracket and optional steel tracks further improve performance in specialty applications. The CX37C also offers an optional 4-way hydraulic blade that can be angled 25 degrees in either direction.
Fuel Efficiency
The CX37C uses Cooled Exhaust Gas Recirculation (CEGR) to meet Tier 4 Final regulations. This zero-effort solution has no particulate filter to maintain, no exhaust fluid to add and doesn’t require fuel-burning regeneration. Along with the standard auto-idle, the 24-hp engine delivers excellent power and fuel economy.
Comfort and Visibility
The CX37C is available with a ROPS/FOPS four-post canopy or an enclosed cab with heat, A/C and radio. Both operator environments have outstanding all-around visibility and feature an adjustable seat and ergonomic joysticks with proportional controls for greater feel and responsiveness of attachments.
Serviceability
C Series mini excavators maintain the CASE hallmark of maintenance made easy. All fill ports, filters, gauges, grease points, and main service items are grouped together and easily accessible from the ground.
For more information, check out the CX37C brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS four post canopy or enclosed cab
- ISO 6396:2008 sound pressure level LpA=75bB (A)
- Pilot operated hand controls and foot pedals
- Adjustable seat w/seat belt
- Arm rests
- 12V socket
- Display includes:
- Engine oil pressure warning lamp
- Battery charging warning lamp
- Engine preheat pilot lamp
- Engine coolant temp warning lamp
- Air cleaner warning lamp
- Overload warning lamp
- Travel speed pilot lamp
- Fuel low level warning lamp
- Hyd. quick coupler lock lamp
- Engine coolant temp gauge
- Fuel gauge
- Hour meter
Electrical
- 12-volt electrical starting system
- Heavy-duty battery
- Battery Master Switch
- Key Start
- Anti-Theft-Engine starting passwords
- Front working light
- Auto-idle feature with on/off switch
- Horn
- Pre-wired – Telematics ready
Warranty
- Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
Engine
- Yanmar 3TNV88F-ESHYB
- Glow plug starting aid
- Dry type air cleaner with restriction indicator
Upper Structure
- Zero tail swing
- Standard arm: 4 ft 3 in (1.3 m)
- Bucket linkage with lifting hook
- Thumb bracket
Hydraulics
- Auxiliary hydraulics – single/bi-directional – and plumbing to arm
- Large hydraulic oil cooler
- Control pattern selector valve
- Cylinder rod protection covers – Dozer, Boom
Track Drive
- Rubber tracks
- Automatic 2-speed travel
- Fully hydrostatic drive system
- Sealed and lubricated track rollers
- Track tension adjustment – grease type
Other
- Swing boom – 75° left /50° right
- Hydraulic backfill blade
Optional Equipment
Other
- Additional counterweight: 330 lb (150 kg)
- Optional long arm: 5 ft 3 in (1.6 m)
- Hydraulic quick coupler provision
- Hydraulic coupler
- Klac coupler
- Mechanical coupler
- Hydraulic hammer
- Beacon
- 2nd auxiliary circuit
- Steel Tracks
- 4-way angle blade with 25 degree left and 25 degree right angle offset: adds 220 lb (100kg)
Operator Environment
- Cab with Heat and air conditioning and radio with USB and 2 speakers
- Travel alarm
Track Options
- Tracks: Steel tracks 12 in (300 mm)
