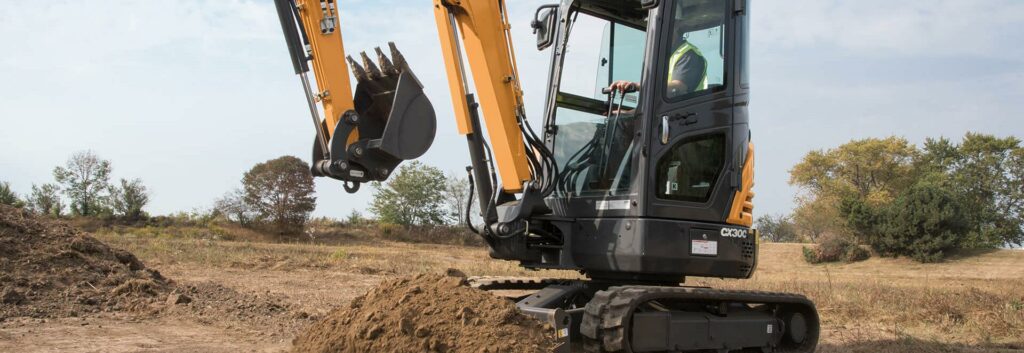

An operating weight of three metric tons, digging forces of more than 4,500 lb., yet still in a transport-friendly size that can be towed with a pickup truck* – compact power is what the CX30C mini excavator is all about. A zero-tailswing design, powered by a 25-hp Tier 4 Final engine, is complemented by performance-enhancing standard features such as proportional controls, Automatic 2-Speed Travel and an adjustable offset boom. It all comes together to give contractors the nimble strength needed for demanding, close-quarter jobs.

Productivity
As with all CASE C Series mini excavators, standard features include auxiliary hydraulics for attachment versatility, a push blade for backfilling and added stability in digging applications, an Automatic 2-Speed Travel system that adjusts torque as ground conditions change, and a control pattern selector that lets operators choose between SAE or ISO setups. A zero tailswing design prevents the counterweight from protruding past the tracks, and when combined with the adjustable boom that can be offset to the left or the right, this nimble machine is able to work against or around structures and obstacles. The CX30C is also available with a hydraulic thumb and additional counterweight.
Fuel Efficiency
The CX30C uses a fuel efficient diesel engine, with a maintenance-free Tier 4 Final emissions solution. There’s no regeneration required, no exhaust filter to maintain or replace and no Diesel Exhaust Fluid to add. Just get in and go.
Comfort and Visibility
The CX30C comes standard with a four-post ROPS/FOPS canopy or with a heated cab option that includes a radio and USB input. Both environments provide excellent visibility of the bucket, into the trench and all around the machine, and feature standard proportional controls for responsive attachment operation and an adjustable seat for added comfort.
Serviceability
Maintenance points are grouped together and easily accessible from the ground, as are main service items such as filters and fill ports. The CX30C also features spacious, wide-opening compartments for excellent access to the engine, control valves and radiator. It all helps you more easily maintain and maximize the performance of your machine.
For more information, check out the CX30C brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS four post canopy
- ISO 6396:2008 sound pressure level LpA=73.5bB (A)
- Pilot operated hand controls and foot pedals
- Adjustable seat w/seat belt
- Armrests
- 12V socket
- Display includes:
- Engine oil pressure lamp
- Water temperature lamp
- Low fuel warning lamp
- Battery charge lamp
- Engine preheat lamp
- Travel speed lamp
- Air cleaner warning lamp
- Hyd. quick coupler lock lamp
- High travel speed lamp
- Water temperature gauge
- Fuel gauge and Hour meter
Electrical
- 12-volt electrical starting system
- Heavy-duty battery
- Battery Master Switch
- Key Start
- Anti-Theft-Engine starting passwords
- Front working light
- 12 V power outlet
- Horn
- Pre-wired – Telematics ready
Track Drive
- Rubber belt tracks
- Automatic 2-speed travel
- Fully hydrostatic drive system
- Sealed and lubricated track rollers
- Track tension adjustment – grease type
Upper Structure
- Zero tail swing
- Standard arm: 3 ft 8 in (1.12 m)
- Bucket linkage with lifting hook
Engine
- Kubota D1305 diesel
- Engine access under rear hood
- Glow plug starting aid
- Dry type air cleaner with restriction indicator
Hydraulics
- Auxiliary hydraulics – single/bi-directional – and plumbing to arm
- Large hydraulic oil cooler
- Control pattern selector valve
- Cylinder rod protection covers – Dozer, Boom
Other
- Swing boom – 75° left /50° right
- Hydraulic backfill blade
- Additional counterweight adds 286 lb (130 kg)
- Thumb bracket
Warranty
- Base warranty coverage: 2-Year/3,000-Hour
- Full Machine Limited Warranty
Optional Equipment
Other
- Hydraulic quick coupler provision
- Hydraulic coupler
- Klac coupler
- Mechanical coupler
- Hydraulic hammer
- Beacon
- 2nd auxiliary circuit
- Hydraulic thumb
Operator Environment
- Cab with Heat and Radio with USB and 2 speakers
- Travel alarm
