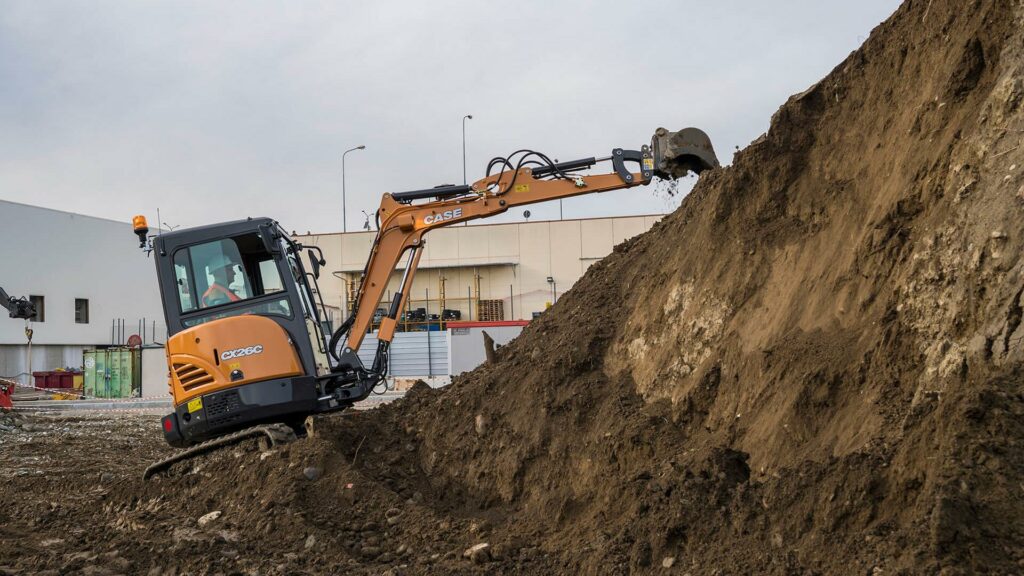

The 5,520 lb., Tier 4 Final CX26C provides excellent breakout force in a lightweight, zero tailswing excavator that achieves dig depths of nearly 8 feet. This compact, transport-friendly power makes this mini ideal for landscapers, utility companies and contractors working in developed neighborhoods or trying to minimize yard damage. With standard push blade, auxiliary hydraulics and proportional controls, as well as an available heated cab, the CX26C is a multi-use platform for a wide variety of applications and environments.
Productivity
Thanks to its compact design, the 2.6-metric ton CX26C can be towed by a conventional pickup truck without the need for a CDL*, making it an easy addition to any fleet. And with the zero tailswing design, the rear counterweight doesn’t extend past the tracks, reducing the risk of damage to the machine, environment or workers. Combined with an adjustable boom that can be offset to either side, this allows for operation alongside walls or obstacles. Several standard features boost performance, including auxiliary hydraulics for greater attachment utility, Automatic 2-Speed Travel for smoother shifting, and a push blade for backfilling and improved digging stability. An additional counterweight, long-arm configuration and thumb bracket are also available.
Fuel Efficiency
The CX26C features a fuel-efficient, naturally aspirated 25-hp engine, providing excellent power and performance with minimal fuel use while meeting Tier 4 Final regulations without any operator inconvenience.
Comfort and Visibility
The standard four-post ROPS/FOPS canopy provides a spacious operator environment with excellent visibility all around the machine and features ergonomic joysticks with fingertip controls and an adjustable seat. The enclosed cab option is designed with floor-to-ceiling windows to maintain sightlines and features heat, radio and a USB port for improved operator comfort throughout the workday.
Serviceability
Maintenance can be done in a matter of minutes thanks to the CX26C’s ground-level serviceability. Two locking access panels provide quick, adjacent access to site gauges, fill ports, grease points, filters and main service components.
For more information, check out the CX26C brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS four post canopy
- ISO 6396:2008 sound pressure level LpA=76 bB (A)
- Pilot operated hand controls and foot pedals
- Adjustable seat w/seat belt
- Arm rests
- 12V socket
- Display includes:
- Engine oil pressure lamp
- Water temperature lamp
- Low fuel warning lamp
- Battery charge lamp
- Engine preheat lamp
- Travel speed lamp
- Air cleaner warning lamp
- Hyd. quick coupler lock lamp
- High travel speed lamp
- Water temperature gauge
- Fuel gauge
- Hour meter
Electrical
- 12-volt electrical starting system
- Heavy-duty battery
- Battery Master Switch
- Key Start
- Anti-Theft-Engine starting passwords
- Front working light
- 12 V power outlet
- Horn
- Pre-wired – Telematics ready
Engine
- Kubota D1305 diesel
- Engine access under rear hood
- Glow plug starting aid
- Dry type air cleaner with restriction indicator
Upper Structure
- Zero tail swing
- Standard arm: 3 ft 8 in (1.12 m)
- Bucket linkage with lifting hook
Hydraulics
- Auxiliary hydraulics – single/bi-directional – and plumbing to arm
- Large hydraulic oil cooler
- Control pattern selector valve
- Cylinder rod protection covers – Dozer, Boom
Other
- Swing boom – 75° left /50° right
- Hydraulic backfill blade
Warranty
- Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
Track Drive
- Rubber tracks
- Automatic 2-speed travel
- Fully hydrostatic drive system
- Sealed and lubricated track rollers
- Track tension adjustment – grease type
Optional Equipment
Other
- Additional counterweight: 286 lb (130 kg)
- Optional long arm: 4 ft 5 in (1.35 m)
- Thumb bracket
- Hydraulic quick coupler provision
- Hydraulic coupler
- Klac coupler
- Mechanical coupler
- Hydraulic hammer
- Beacon
- 2nd auxiliary circuit
- Hydraulic thumb
Operator Environment
- Cab with Heat and Radio with USB and 2 speakers
- Travel alarm
