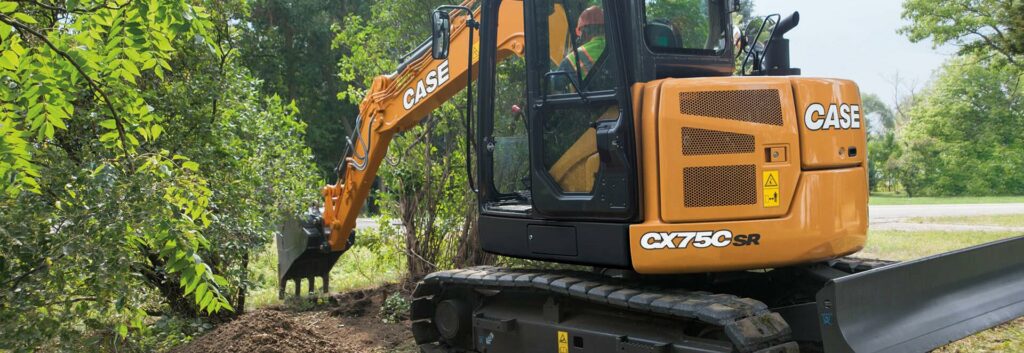

Designed with you in mind, the CASE CX75C SR mid-sized excavator boosts cycle times, digging power, and fuel efficiency with a first-in-class Tier 4 Final solution. The minimum swing radius design is perfect for working in more confined areas, such as along buildings and on roadsides. The large cab on the CX75C SR provides operators with more foot space and elbowroom.
Productivity
Key advancements in the CX75C SR include a 7% faster cycle time and 20% larger fuel tank. The CX75C SR also delivers 9% more hydraulic power than previous models. You can count on efficient operation with the option of three operating modes (auto, heavy and speed priority) to match the engine throttle and RPM requirements for your specific tasks.
Fuel Efficiency
The Tier 4 engine uses CEGR technology to provide easy extended maintenance within a simple but powerful and efficient system.
Comfort and Visibility
Making sure you stay comfortable from sunrise to sunset, the CX75C SR offers a larger and wider cab with 16% more glass area than previous models. Stay safe and efficient all day long with the integrated rear view camera that provides a 360° view of the worksite environment.
Serviceability
Maximize uptime with easily accessible service check points and engine components. The remote shutdown switch and tie down points provide you with more accessible security and transport solutions.
For more information, check out the CX75C SR brochure.
Standard Equipment
Operator Environment
- FOPS Level 1 cab top guard
- Pressurized cab
- One-touch lock front window
- AC/heat/defrost w/ auto climate control
- 6 watt interior dome light
- Mechanical-suspension cloth seat
- Adjustable armrests
- Low-effort joystick controls
- Controls pre-wired for auxiliary
- Blade control lever
- AM/FM radio w/ antenna and 2 speakers
- Anti-theft start code system
- Rubber floor mat
- 12-volt electric socket
- 24-volt cigarette lighter
- External rear view mirrors
- Windshield wiper/washer
- Cup holder
- Storage compartments
- Travel alarm w/ cancel switch
- One key start and lock-up
- Built-in full-color LCD monitor
- Safety glass for all windows
- Polycarbonate roof hatch
Attachment
- Standard boom and arm:
- Boom – 12 ft 8 in (3.87 m)
- Arm – 5 ft 7 in (1.69 m)
- Offset boom and arm:
- Boom – 12 ft 10 in (3.92 m)
- Arm – 5 ft 9 in (1.75 m)
- Boom mounted work light – 70 watt
- Attachment cushion valve
Undercarriage
- 1 ft 6 in (0.45 m) steel shoes, triple semi-grouser
- Full overlap turntable bearing tub
- Front track chain guides
- Hydraulic track adjustment
- X-pattern carbody
Engine
- Isuzu four-cylinder turbo-charged diesel
- Certified Tier 4 Final
- Electronic fuel injection
- Neutral safety start
- Auto-engine warm up
- Glow-plug pre-heat
- One-touch idle
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Green plug oil drain
- 500-hour engine oil change interval
- 24-volt system
- Color LCD monitor
Upper Structure
- Right and left side mirrors
- Isolation mounted cab – fluid
- Common key vandal locks
- Upper mounted work light – 70 watt
- Cab mounted work light – 70 watt
- Swivel guard belly pan
Hydraulics
- ISO pattern controls
- 5,000 hour hydraulic oil change interval
- 1,000 hour hydraulic filter change interval
- SAHR brake
- Three (3) work mode settings
Front Dozer Blade
- Hydraulically controlled front blade:
- 7 ft 7 in (2.31 m) width
- 1 ft 6 in (0.45 m) height
Optional Equipment
Hydraulics
- Auxiliary hydraulics:
- Single acting
- Double acting
- Standard boom only:
- Double acting bi-directional
- Proportional controls
Undercarriage
- 23.6 in (600 mm) steel shoes, triple semi-grouser*
- 1 ft 6 in (0.45 m) rubber pads bolted to standard rail
- *Note: blade will not fully cover 23.6” shoe
Operator Environment
- Control pattern selector
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 screen mesh
- Front rock guard:
- Vertical bars – fixed/one piece/OPG 2
Attachment
- Arm for std. boom – 6 ft 11 in (2.12 m)
- Coupler/Case multi-pin grabber
- Heavy-duty bucket
