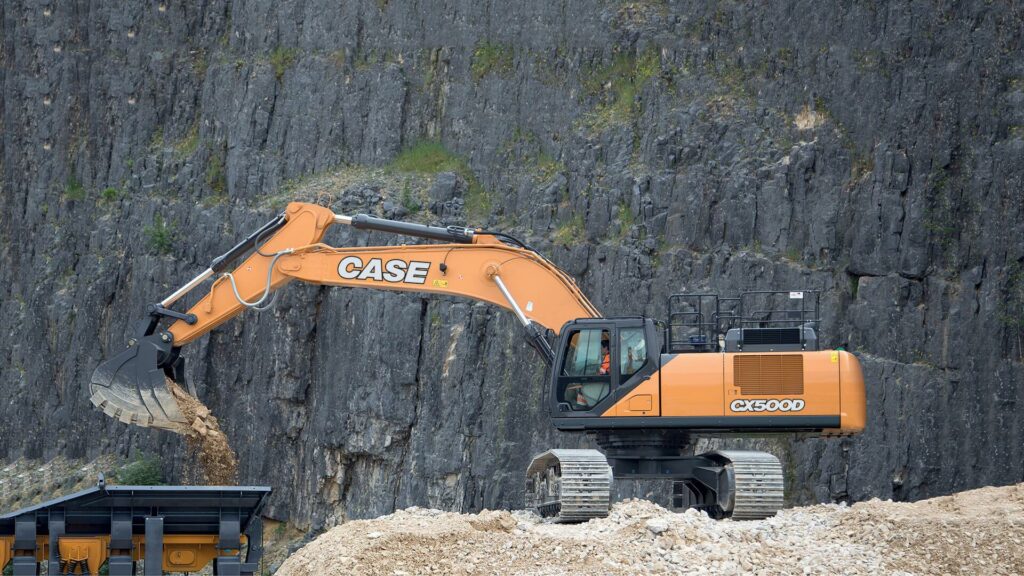

A model designed for mass excavation, the CX500D delivers digging forces of over 70,000 lbf (kN) and high-capacity performance to bench load more trucks or move more pipe in less time. As a CASE D Series excavator, it features one of the industry’s most innovative and responsive hydraulic systems, an industry-leading cab for day-long and year-round comfort, a Tier 4 Final solution that prioritizes fuel-efficient power, and the protection of ProCare for ownership peace-of-mind.
Productivity
A shorter boom and arm provide greater digging forces and enable use of larger-capacity buckets, while the CASE Intelligent Hydraulic System delivers faster, more responsive control for shorter cycle times. Combined with three selectable work modes (Auto, Heavy and Speed Priority), fuel-saving features such as One-Touch idle, Auto-Idle and Auto-Shutdown, and a Tier 4 Final solution that allows for maximum engine power, the CX500D works quickly without sacrificing fuel economy. More productivity-boosting standard features include rearview and side-view cameras, 10 programmable attachment presets and Free Swing for improved craning and placement.
Fuel Efficiency
To meet emission regulations, the CX500D ME has a reengineered Tier 4 Final solution with SCR technology (Selective Catalytic Reduction). With no DPF (Diesel Particulate Filter), there is no additional filter maintenance necessary and no fuel-burning regeneration or associated temperature spikes. As an after-treatment solution, SCR allows for full throttle response throughout the work cycle while still delivering excellent fuel efficiency. Operators only need to add DEF (Diesel Exhaust Fluid) at fill-up.
Comfort and Visibility
D Series full size excavators come standard with spacious, industry-leading comfort. A pressurized cab and viscous mounts reduce noise and vibration. The adjustable heated air-suspension seat, armrests and control consoles allow the operator to customize their workstation for greater comfort. Floor-to-ceiling safety glass and a standard 7-inch LCD monitor with rearview and side-view cameras provide excellent visibility. An optional Max View display includes an additional side camera, providing a 270-degree aerial view around the machine. The monitor also provides real-time performance data, fuel usage reports and more. Other comforts include automatic climate control, hands-free Bluetooth radio and a joystick trigger mute.
Serviceability
CASE makes it easy to maintain the CX500D ME and maximize its life. Standard oil sample ports allow for quick contaminant checks, grouped service points speed up daily maintenance and removable debris screens help protect coolers from work-halting clogs. Plus, with the included protection of ProCare, owners benefit from a 3-yr/2,000-hr planned maintenance package.
For more information, check out the CX500D brochure.
Standard Equipment
Operator Environment
- ROPS protection
- FOPS cab top guard – Level 1
- Pressurized cab
- Face vent
- Cab lights – 2
- Interior dome light
- One-touch lock front window
- One piece window – right
- Safety glass windows
- Gate lock hydraulic activation
- Emergency exit and hammer
- Clear polycarbonate roof window with sunshade
- AC/heat /defrost with auto climate control
- LED Color monitor – 7 in (180 mm)
- 26 selectable languages for monitor
- On-board diagnostic system
- 10 programmable attachments settings on monitor – 5 single flow, 5 dual flow
- Seat belt – 3 in (76 mm)
- Heated high-back cloth seat with air suspension and 65° tilt adjustment
- Sliding seat – 3.54 in (90 mm)
- Adjustable armrests
- Tilting consoles – 4-position
- Sliding cockpit – 3.15 in (80 mm)
- Low-effort joystick controls
- Controls pre-wired for auxiliary
- Single pedal travel
- Straight travel
- AM/FM radio with antenna, 2 speakers and Bluetooth capabilities
- Aux-in port for personal electronics
- Radio mute switch – joystick
- Rear-view camera
- Side-view camera
- Anti-theft system – start code system
- Rubber floormat
- 12 Volt electric outlet
- 24 Volt cigarette lighter
- Windshield wiper/washer
- Cup holder
- Storage compartments
- Warm/cool storage compartment
- Travel alarm with cancel switch
- Ignition keys
- One key start & lock-up
- Cab filter – external
- Cab handrails
- Operator’s manual
Fuel Economy Systems
- Engine Idle /Fuel Economy System:
- Auto-idle
- One-touch idle
- Auto-idle shut-down
- BEC – Boom Economy Control
- AEC – Auto Economy Control
- SWC – Swing Relief Control
- SSC – Spool Stroke Control
Attachments
- Boom – 21 ft 6 in (6.55 m)
- Arm – 8 ft 4 in (2.53 m)
- Heavy-duty bucket linkage
- Boom mounted work light – 70 watt
- Auxiliary pipe brackets
- Centralized grease fittings
- Attachment cushion valve
- Arm and boom regeneration
- Bucket anti-clatter device
- Chrome pins
- Easy Maintenance System (EMS) bushings
- Teardrop pin retention keepers
Undercarriage
- Long undercarriage
- 35.4 in (900 mm) steel shoes, triple semi-grouser
- Full overlap turntable bearing tub
- Double track chain guides
- Hydraulic track adjustment
- Sealed link chain
- Steps
- Carbody belly pan – swivel guard
- X-pattern carbody
- Lashing points – tie downs
Engine
- Isuzu AQ-6UZ1X
- Tier 4 Final Certified
- Selective Catalytic Reduction – SCR
- Diesel Oxidation Catalyst – DOC
- Cooled Exhaust Gas Recirculation – CEGR
- EGR Coolers
- Six-cylinder turbo-charged diesel
- VGT turbocharger
- Electronic fuel injection
- High pressure common rail system
- Neutral safety start
- Auto-engine warm up
- Glow-plug pre-heat
- Fuel Economy Assist System – FEA
- Engine Protection Feature – EPF
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Drain for fuel tank
- Remote engine oil drain
- 24 Volt system
- Engine oil sample port
- Battery disconnect switch
- Air pre-cleaner – Cyclone
- High ambient temperature cooling package
- Emergency engine stop
- External Fuel and DEF gauges
- Fan housing
- Fuel cooler
- Fuel filter restriction indicator
- Fuel shut-off valve
- Idle start
- Radiator, oil cooler, intercooler – protective screen
Upper Structure
- ISO mirrors – 3
- Viscous Cab Mounts – fluid and spring
- Upper mounted work light – 70 watt
- Swivel guard belly pan
- Center cover – over main CV
- Fuel tank belly pan
- Handrail – RH access
- ISO guard rails
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and toolbox
Hydraulics
- Auto power boost
- Auto swing priority
- Arm speed assistance – 2 pump flow
- Auxiliary flow control
- Auxiliary valve
- Boom speed assistance – 2 pump flow
- Bucket curl assist
- Control levers pre-wired for auxiliary hydraulics
- Electronically controlled hydraulic pumps
- Holding valve – Boom and Arm
- Fire wall
- Hydraulic filter restriction indicator
- Neutral pump de-stroke
- Oil cooler
- Power save
- Pump stand-by pressure
- Auto travel speed change
- Selectable work modes
- Free swing
- Hydraulic oil sample port
- Control pattern selector
- Pre-set auxiliary pump settings
- Auxiliary valve
- SAHR brake
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Optional Equipment
Hydraulics
- Auxiliary hydraulics:
- Single acting/joystick activated
- Double acting/joystick activated – thumb
- Multi-function with electronic pressure control /joystick activated with electronic proportional controls
- Secondary low-flow/joystick activated
- Proportional hydraulic controls
- Hose Burst Check Valve – HBCV
- Hydraulic CWT Removal Device
Upper Structure
- Rubber bumper guard – order through Service Parts
- Catwalk – left and right side
Engine
- Refuling pump
Undercarriage
- 29.5 in (750 mm) steel shoes, triple semi-grouser
- Full Length Track Chain Guards
Operator Environment
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
- Front rock guard – vertical bars
- Two piece/OPG 1
- Front rock guard – vertical bars
- One piece/OPG 2
- Vandal guard (front window) with common key
- Sun visor
- LED Package:
- Includes 1 Side view camera and 6 LED Lights – 2 front cab mounted, 2 rear mounted and 1 mounted on each side
Attachments
- Heavy-duty arm – 8 ft 4 in (2.53 m)
- Tools:
- Heavy-duty/Extreme-duty/Ditching
- Buckets; Hammers; Thumbs;
- Compaction plates.
- Load holding control
