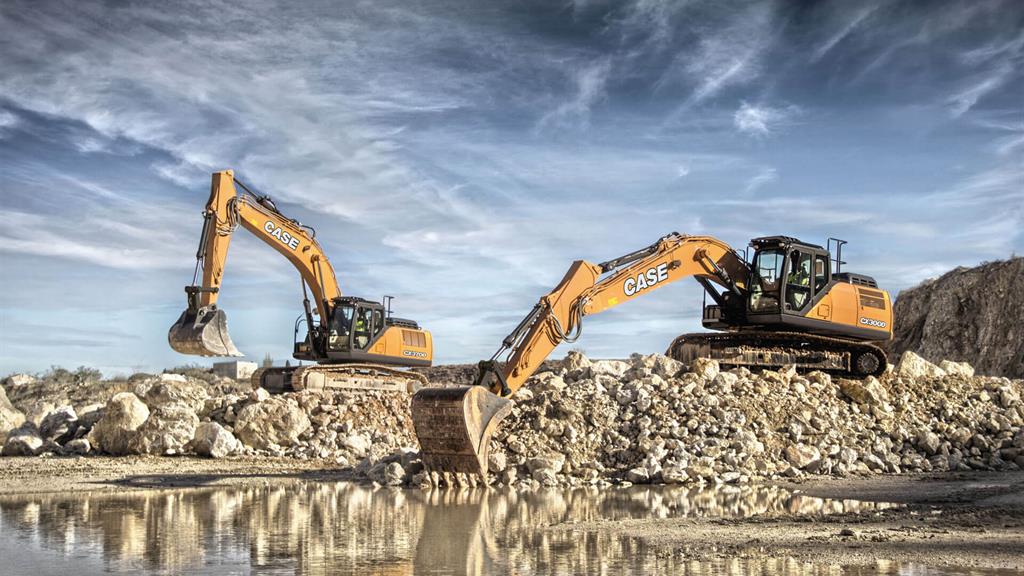

Big digging muscle meets hallmark CASE hydraulic precision and responsiveness to deliver one of the most powerful, efficient and reliable excavators in the CASE D Series lineup: the CX300D. A large and intuitive workstation provides operators with excellent comfort and visibility to the work area. And the CX300D is protected by CASE ProCare — giving you peace of mind to invest in your business knowing that CASE and your local CASE dealer supports you with preventive maintenance, SiteWatch telematics and more. This model is also now available with OEM-Fit 2D and 3D machine control solutions from your CASE SiteControl certified dealer.
Productivity
In addition to the already-impressive controllability of our CASE Intelligent Hydraulic System, D Series excavators have an electronically controlled hydraulic pump, a larger control valve and solenoid valves. These upgrades help boost breakout force, increase lifting strength and improve responsiveness, which enables the machine to work faster throughout the work cycle. In fact, cycle times are up to 12% faster than our C Series excavators. The standard Free-Swing feature allows the carriage to spin freely while operating the boom and arm, which provides improved control when craning, pipe laying or lifting offset loads.
Fuel Efficiency
D Series excavators use an SCR Tier 4 Final solution that’s cleaner burning and provides up to 14% increased fuel efficiency without sacrificing power. As an after-treatment system, SCR lets the engine run at peak performance to provide full throttle response throughout the work cycle. And best yet, SCR is simple. No DPF regeneration. No new maintenance. No downtime. Just pour and go.
Comfort and Visibility
The improved cab provides comfort like never before. There’s more entry room and foot space. The air-ride seat is larger to reduce pressure points, slides forward and back, tilts back up to 65°, has an adjustable lumbar system and a built-in heater. An innovative armrest design adjusts independently of the console while still ensuring joysticks are always comfortably within reach. Even the pedals can adjust ±22° to suit personal preference. There’s also a Bluetooth radio and climate control system that responds to sunlight. The 7″ widescreen color monitor provides a constant rear camera view for increased awareness.
Serviceability
When you invest in CASE equipment, you need it to last. We make it easy. D Series excavators are no exception. A Standard oil sample ports allows for quick sampling of engine oil and hydraulic oil while grouped service points, tilt-out coolers and auto-locking side panels that stay open make it easy to perform routine maintenance. We even added handrails to make it easier to get around the machine.
For more information, check out the CX300D brochure.
Standard Equipment
Operator Environment
- ROPS protection
- FOPS cab top guard – Level 1
- Pressurized cab
- Face vent
- Cab lights – 2
- Interior dome light
- One-touch lock front window
- One piece window – right
- Safety glass windows
- Gate lock hydraulic activation
- Emergency exit and hammer
- Clear polycarbonate roof window with sunshade
- AC/heat/defrost with auto climate control
- LED Color monitor – 7 in (180 mm)
- 26 selectable languages for monitor
- On-board diagnostic system
- 10 programmable attachments settings on monitor – 5 single flow, 5 dual flow
- Seatbelt – 3 in (76 mm)
- Heated high-back cloth seat with air suspension and 65° tilt adjustment
- Sliding seat — 3.54 in (90 mm)
- Adjustable armrests
- Tilting consoles – 4-position
- Sliding cockpit – 3.15 in (80 mm)
- Low-effort joystick controls
- Controls pre-wired for auxiliary
- Single pedal travel
- Straight travel
- AM/FM radio with antenna, 2 speakers and Bluetooth capabilities
- Aux-in port for personal electronics
- Radio mute switch – joystick
- Rear-view camera
- Anti-theft system – start code system
- Rubber floormat
- 12 Volt electric outlet
- 24 Volt cigarette lighter
- Windshield wiper/washer
- Cup holder
- Storage compartments
- Warm/cool storage compartment
- Travel alarm with cancel switch
- Ignition keys
- One key start & lock-up
- Cab filter – external
- Cab handrails
- Operator’s manual
Fuel Economy Systems
- Engine Idle/Fuel Economy System: Auto-idle, One-touch idle, Auto-idle shut-down
- BEC – Boom Economy Control
- AEC – Auto Economy Control
- SWC – Swing Relief Control
- SSC – Spool Stroke Control
Attachments
- Boom – 20 ft 2 in (6.15 m)
- Arm – 10 ft 5 in (3.18 m)
- Heavy-duty bucket linkage
- Boom mounted work light – 70 watt
- Auxiliary pipe brackets
- Centralized grease fittings
- Attachment cushion valve
- Arm and boom regeneration
- Bucket anti-clatter device
- Chrome pins
- Easy Maintenance System (EMS) bushings
- Teardrop pin retention keepers
Undercarriage
- Long undercarriage
- 31.5 in (800 mm) steel shoes, triple semi-grouser
- Full overlap turntable bearing tub
- Single track chain guides
- Hydraulic track adjustment
- Sealed link chain
- Steps
- Carbody belly pan – swivel guard
- X-pattern carbody
- Lashing points – tie downs
- Extra Filter Kit:
- Engine oil filter
- Filter wrench
- Fuel filters
- Grease gun
- Green plug oil drain hose for engine oil drain
- Hydraulic return filter
- Pilot circuit hydraulic filter
Engine
- Isuzu AQ-6HK1X
- Tier 4 Final Certified
- Selective Catalytic Reduction – SCR
- Diesel Oxidation Catalyst – DOC
- Cooled Exhaust Gas Recirculation – CEGR
- EGR Coolers
- Six-cylinder turbo-charged diesel
- VGT turbocharger
- Electronic fuel injection
- High pressure common rail system
- Neutral safety start
- Auto-engine warm up
- Glow-plug pre-heat
- Fuel Economy Assist System – FEA
- Engine Protection Feature – EPF
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Drain for fuel tank
- Remote engine oil drain
- 500-hour engine oil change interval
- 24 Volt system
- Engine oil sample port
- Battery disconnect switch
- High ambient temperature cooling package
- Air pre-cleaner – Cyclone
- High ambient temperature cooling package
- Emergency engine stop
- External Fuel and DEF gauges
- Fan housing
- Fuel cooler
- Fuel filter restriction indicator
- Fuel shut-off valve
- Idle start
- Radiator, oil cooler, intercooler – protective screen
Upper Structure
- ISO mirrors – 3
- Cab ISO-Mounts – fluid and spring
- Upper mounted work light – 70 watt
- Swivel guard belly pan
- Center cover – over main CV
- Fuel tank belly pan
- Handrail – RH access
- ISO guard rails
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and tool box
Hydraulics
- Auto power boost
- Auto swing priority
- Arm speed assistance – 2 pump flow
- Auxiliary flow control
- Auxiliary valve
- Boom speed assistance – 2 pump flow
- Bucket curl assist
- Control levers pre-wired for auxiliary hydraulics
- Electronically controlled hydraulic pumps
- Holding valve – Boom and Arm
- Fire wall
- Hydraulic filter restriction indicator
- Neutral pump de-stroke
- Oil cooler
- Power save
- Pump stand-by pressure
- Auto travel speed change
- Selectable work modes
- Free swing
- Hydraulic oil sample port
- Control pattern selector
- Pre-set auxiliary pump settings
- Auxiliary valve
- 5,000-hour hydraulic oil change interval
- 1,000-hour hydraulic filter change interval
- SAHR brake
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Optional Equipment
Hydraulics
- Auxiliary hydraulics:
- Single acting/joystick activated
- Double acting/joystick activated – thumb
- Multi-function with electronic pressure control/joystick activated with electronic proportional controls
- Secondary low-flow/joystick activated
- Proportional hydraulic controls
- Hose Burst Check Valve – HBCV
Upper Structure
- Rubber bumper guard – order through Service Parts
Engine
- Refueling pump
- Air pre-cleaner – Cyclone
Undercarriage
- 23.6 in (600 mm) steel shoes, .triple semi-grouser
- 27.6 in (700 mm) steel shoes, triple semi-grouser
- Track guides – triple
Operator Environment
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
- Front rock guard – vertical bars
- Two piece/OPG 1
- Front rock guard – vertical bars
- One piece/OPG 2
- Vandal guard (front window) with common key
- Rain deflector – not available with Front guards
- Sun visor
- Side-view camera
- LED Package: Includes 1 Side view camera and 6 LED Lights – 2 front cab mounted, 2 rear mounted and 1 mounted on each side
MACHINE CONTROL
- Leica iCON iXE2 – 2D System
- Leica iCON iXE3 – 3D System
Attachments
- Heavy-duty arm – 8 ft 8 in (2.65 m)
- Long arm – 12 ft 0 in (3.66 m)
- Quick coupler/Case multi-pin grabber
- Tools: Heavy-duty/Extreme-duty/Ditching Buckets, Hammers, Thumbs, Compaction plates
- Load holding control
