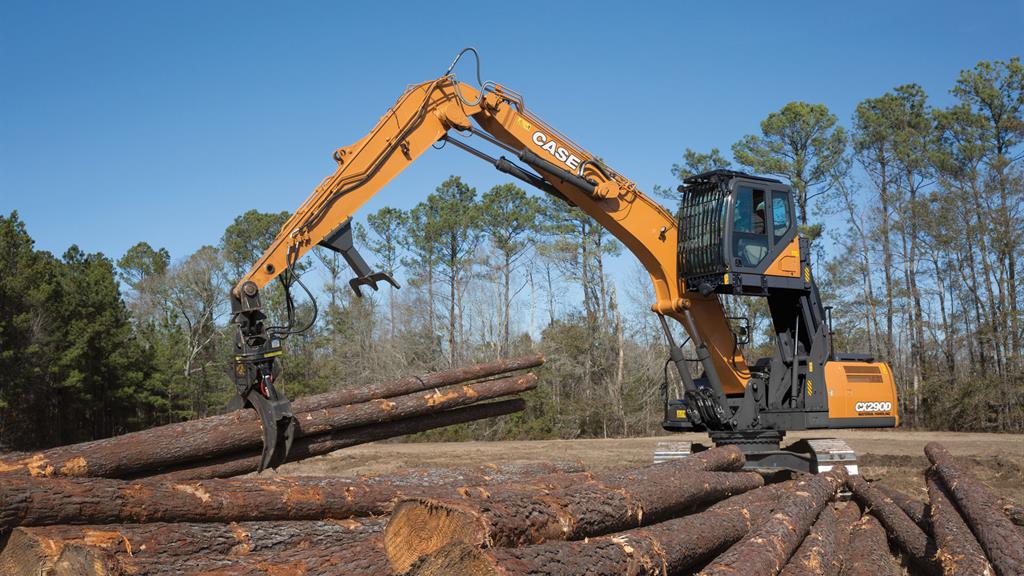

The CX290D material handler features a 177 HP Tier 4 Final engine, a hydraulically controlled elevating cab, longer arm and boom with optimized hydraulic circuits for improved attachment performance and reduced shock in the cab, as well as an electronic sensor-driven anti-interference device that automatically prevents the grapple or other attachments from coming into contact with the machine’s structure during operation. The CX290D also features additional guarding on the cab and undercarriage designed to protect the operator and machine during tough waste and scrap handling applications.
Productivity
Faster cycle times are achieved with the CASE Intelligent Hydraulic System, which provides faster and more efficient path of hydraulic flow.
The CX290D Material Handler uses a reinforced curved boom, giving operators a better angle of reach while loading semi-trucks with material. The 16’5” straight arm has a bucket tilt cylinder which allows for more precise operation of attachments. Auxiliary Lines on the arm allow for connecting attachments such as a rotating grapple or a wide variety of other attachments.
The CX290D Scrap Loader uses a straight boom and goose neck arm, ideal for simple handling and loading of scrap and waste material.
Fuel Efficiency
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. New electro-hydraulic models with the all-new 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
Comfort and Visibility
Not only does the CX290D models feature the most spacious cab in their size class, but these machines also provide excellent visibility thanks to an elevating cab that raises 7.5 feet (2.5 m) from its stowed position resulting in the average operator being just over 16 feet (5.0 m) at eye level, allowing the operator to move material quicker and safer. A standard Bluetooth radio gives operators hands-free functionality that further improves the operator experience. A standard rearview camera and side camera feed a 7-inch widescreen monitor that also provides operators with real-time access to important performance parameters, including fuel consumption, operating hours and machine information. The optional CASE Max View Monitor provides 270o visibility, providing the operator full visibility of machine’s surroundings.
Serviceability
CASE understands the importance of uptime and machine utilization. Part of CASE’s DNA is providing easy access for operator and service technicians to complete their daily walkarounds and routine service inspections. The CX290D excavator models are no exception. Hydraulic oil site gauges, DEF level sight gauge, grouped service points, and auto-locking side panels that stay open make it easy to perform routine maintenance. Standard oil sample ports allow service technicians to easily take samples and check the quality of the hydraulic oil and the engine oil. Extra-large DEF tanks provide a Refill frequency of 4-5 times to 1 fuel fill. Increased number of handrails make it EASIER and SAFER operators and service techs to get around the machine, complete the daily walkarounds and/or service checks, and get the machine back into production.
For more information, check out the CX290D brochure.
Standard Equipment
Operator Environment
- ROPS protection
- FOPS cab top guard – Level 1
- Pressurized cab
- Face vent
- Cab lights – 2
- Interior dome light
- One-touch lock front window
- One piece window – right
- Safety glass windows
- Gate lock hydraulic activation
- Emergency exit and hammer
- Clear polycarbonate roof window with sunshade
- AC/heat/defrost with auto climate control
- LED Color monitor – 7 in (180 mm)
- 26 selectable languages for monitor
- On-board diagnostic system
- 10 programmable attachments settings on monitor – 5 single flow, 5 dual flow
- Seatbelt – 3 in (76 mm)
- Heated high-back cloth seat with air suspension and 65° tilt adjustment
- Sliding seat — 3.54 in (90 mm)
- Adjustable armrests
- Tilting consoles – 4-position
- Sliding cockpit – 3.15 in (80 mm)
- Low-effort joystick controls
- Controls pre-wired for auxiliary
- Straight travel
- AM/FM radio with antenna, 2 speakers and Bluetooth capabilities
- Aux-in port for personal electronics
- Radio mute switch – joystick
- Rear-view camera
- Anti-theft system – start code system
- Rubber floormat
- 12 Volt electric outlet
- 24 Volt cigarette lighter
- Windshield wiper/washer
- Cup holder
- Storage compartments
- Warm/cool storage compartment
- Travel alarm with cancel switch
- Ignition keys
- One key start & lock-up
- Cab filter – external
- Cab handrails
- Operator’s manual
Fuel Economy Systems
- Engine Idle/Fuel Economy System:
- Auto-idle
- One-touch idle
- Auto-idle shut-down
- BEC – Boom Economy Control
- AEC – Auto Economy Control
- SWC – Swing Relief Control
- SSC – Spool Stroke Control
Attachments
- Boom – 23 ft 4 in (7.0 m)
- Arm – 15 ft 6 in (5.0 m)
- Boom mounted work light – 70 watt
- Auxiliary pipe brackets
- Centralized grease fittings
- Attachment cushion valve
- Arm and boom regeneration
- Chrome pins
- Easy Maintenance System (EMS) bushings
- Teardrop pin retention keepers
Undercarriage
- Long undercarriage
- 23 in (600 mm) flat steel shoes
- Full overlap turntable bearing tub
- Single track chain guides
- Hydraulic track adjustment
- Sealed link chain
- Steps
- Carbody belly pan – swivel guard
- X-pattern carbody
- Lashing points – tie downs
- Extra Filter Kit:
- Engine oil filter
- Filter wrench
- Fuel filters
- Grease gun
- Green plug oil drain hose for engine oil drain
- Hydraulic return filter
- Pilot circuit hydraulic filter
Engine
- Isuzu AQ-4HK1X
- Tier 4 Final Certified
- Selective Catalytic Reduction – SCR
- Diesel Oxidation Catalyst – DOC
- Cooled Exhaust Gas Recirculation – CEGR
- EGR Coolers
- Four-cylinder turbo-charged diesel
- VGT turbocharger
- Electronic fuel injection
- High pressure common rail system
- Neutral safety start
- Auto-engine warm up
- Glow-plug pre-heat
- Fuel Economy Assist System – FEA
- Engine Protection Feature – EPF
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Drain for fuel tank
- Remote engine oil drain
- 500-hour engine oil change interval
- 24 Volt system
- Engine oil sample port
- Battery disconnect switch
- Emergency engine stop
- External Fuel and DEF gauges
- Fan housing
- Fuel cooler
- Fuel filter restriction indicator
- Fuel shut-off valve
- Idle start
- Radiator, oil cooler, intercooler – protective screen
Upper Structure
- ISO mirrors – 3
- Upper mounted work light – 70 watt
- Swivel guard belly pan
- Center cover – over main CV
- Fuel tank belly pan
- Handrail – RH access
- ISO guard rails
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and tool box
Hydraulics
- Auto power boost
- Auto swing priority
- Arm speed assistance – 2 pump flow
- Auxiliary flow control
- Auxiliary valve
- Boom speed assistance – 2 pump flow
- Control levers pre-wired for auxiliary hydraulics
- Electronically controlled hydraulic pumps
- Holding valve – Boom and Arm
- Hydraulic filter restriction indicator
- Neutral pump de-stroke
- Oil cooler
- Arm/Boom Shock reduction
- Anti-interference Device
- Emergency Cab Lowering Device
- Power save
- Pump stand-by pressure
- Auto travel speed change
- Selectable work modes
- Free swing
- Hydraulic oil sample port
- Control pattern selector
- Pre-set auxiliary pump settings
- Auxiliary valve
- 5,000-hour hydraulic oil change interval
- 1,000-hour hydraulic filter change interval
- SAHR brake
- 8 ft 6 in (2.59 m) width – comes with 23.6 in (600 m) steel shoes
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Optional Equipment
Hydraulics
- Auxiliary hydraulics:
- Single acting/joystick activated
- Double acting/joystick activated – thumb
- Multi-function with electronic pressure control/joystick activated with electronic proportional controls
- Secondary low-flow/joystick activated
- Proportional hydraulic controls
- Hose Burst Check Valve – HBCV
Upper Structure
- Rubber bumper guard – order through Service Parts
Engine
- Air pre-cleaner – Cyclone
- Reversible fan
Undercarriage
- 23.6 in (600 mm) steel shoes, triple semi-grouser
- 27.6 in (700 mm) steel shoes, triple semi-grouser
- 31.5 in (800 mm) steel shoe
- Track guides – triple
Operator Environment
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
- Front rock guard – vertical bars
- Two piece/OPG 1
- Front rock guard – vertical bars
- One piece/OPG 2
- Vandal guard (front window) with common key
- Rain deflector – not available with Front guards
- Sun visor
- Side-view camera
- LED Package:
- Includes 1 Side view camera and 6 LED Lights – 2 front cab mounted, 2 rear mounted and 1 mounted on each side
