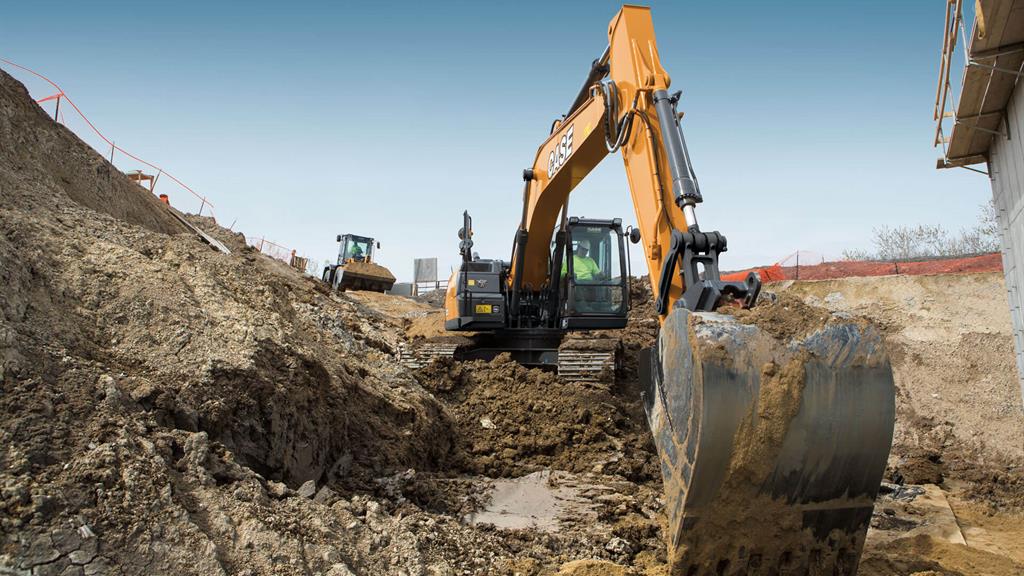

The MVP of a water pipeline. The primary earthmover for a road and bridge contractor. The excavator that helps people get back on their feet in the wake of disaster. We’re not saying that the CX210D is perfect for everyone, but this excavator has proven itself over and over again in the field with extremely powerful digging performance, excellent precision and control responsiveness, a comfortable cab and intuitive operator station, and easy owning and operating. The CX210D is also protected by CASE ProCare — giving you peace of mind to invest in your business knowing that CASE and your local CASE dealer supports you with preventive maintenance, SiteWatch telematics and more. This model is also now available with OEM-Fit 2D and 3D machine control solutions from your CASE SiteControl certified dealer.
Productivity
Achieve up to 9% faster cycle times and greater power thanks to an improved hydraulic system with an electronically controlled hydraulic pump, a larger control valve and solenoid valves. Craning an uneven load? Activate the standard Free-Swing feature for improved control. Working at night? Opt for the LED light package. To help tailor the machine to the operator and the application, a control pattern selector and power mode selector both come standard.
Fuel Efficiency
An SCR solution lets the engine run at peak performance to provide full throttle response throughout the work cycle while still meeting Tier 4 Final emissions regulations and providing up to 5% greater fuel efficiency. And without a Diesel Particulate Filter to replace, SCR is simple too. Simply add a little Diesel Exhaust Fluid during fill up and go.
Comfort and Visibility
The improved cab provides comfort like never before. There’s more entry room and foot space. The air-ride seat is larger to reduce pressure points, slides forward and back, tilts back up to 65°, has an adjustable lumbar system and a built-in heater. An innovative armrest design adjusts independently of the console while still ensuring joysticks are always comfortably within reach. Even the pedals can adjust ±22° to suit personal preference. There’s also a Bluetooth radio and climate control system that responds to sunlight. The 7″ widescreen color monitor provides a constant rear camera view for increased awareness.
Serviceability
When you invest in CASE equipment, you need it to last. We make it easy. D Series excavators are no exception. A Standard oil sample ports allows for quick sampling of engine oil and hydraulic oil while grouped service points, tilt-out coolers and auto-locking side panels that stay open make it easy to perform routine maintenance. We even added handrails to make it easier to get around the machine.
For more information, check out the CX210D brochure.
Standard Equipment
Operator Environment
- ROPS protection
- FOPS cab top guard – Level 1
- Pressurized cab
- Face vent
- Cab lights – 2
- Interior dome light
- One-touch lock front window
- One piece window – right
- Safety glass windows
- Gate lock hydraulic activation
- Emergency exit and hammer
- Clear polycarbonate roof window with sunshade
- AC/heat/defrost with auto climate control
- LED Color monitor – 7 in (180 mm)
- 26 selectable languages for monitor
- On-board diagnostic system
- 10 programmable attachments settings on monitor – 5 single flow, 5 dual flow
- Seatbelt – 3 in (76 mm)
- Heated high-back cloth seat with air suspension and 65° tilt adjustment
- Sliding seat — 3.54 in (90 mm)
- Adjustable armrests
- Tilting consoles – 4-position
- Sliding cockpit – 3.15 in (80 mm)
- Low-effort joystick controls
- Controls pre-wired for auxiliary
- Straight travel
- AM/FM radio with antenna, 2 speakers and Bluetooth capabilities
- Aux-in port for personal electronics
- Radio mute switch – joystick
- Rear-view camera
- Anti-theft system – start code system
- Rubber floormat
- 12 Volt electric outlet
- 24 Volt cigarette lighter
- Windshield wiper/washer
- Cup holder
- Storage compartments
- Warm/cool storage compartment
- Travel alarm with cancel switch
- Ignition keys
- One key start & lock-up
- Cab filter – external
- Cab handrails
- Operator’s manual
Hydraulics
- Auto power boost
- Auto swing priority
- Arm speed assistance – 2 pump flow
- Auxiliary flow control
- Auxiliary valve
- Boom speed assistance – 2 pump flow
- Bucket curl assist
- Control levers pre-wired for auxiliary hydraulics
- Electronically controlled hydraulic pumps
- Holding valve – Boom and Arm
- Fire wall
- Hydraulic filter restriction indicator
- Neutral pump de-stroke
- Oil cooler
- Power save
- Pump stand-by pressure
- Auto travel speed change
- Selectable work modes
- Free swing
- Hydraulic oil sample port
- Control pattern selector
- Pre-set auxiliary pump settings
- Auxiliary valve
- 5,000-hour hydraulic oil change interval
- 1,000-hour hydraulic filter change interval
- SAHR brake
Fuel Economy Systems
- Engine Idle/Fuel Economy System: Auto-idle, One-touch idle, Auto-idle shut-down
- BEC – Boom Economy Control
- AEC – Auto Economy Control
- SWC – Swing Relief Control
- SSC – Spool Stroke Control
Engine
- Isuzu AR-4HK1X
- Tier 4 Final Certified
- Selective Catalytic Reduction – SCR
- Diesel Oxidation Catalyst – DOC
- Cooled Exhaust Gas Recirculation – CEGR
- EGR Coolers
- Four-cylinder turbo-charged diesel
- VGT turbocharger
- Electronic fuel injection
- High pressure common rail system
- Neutral safety start
- Auto-engine warm up
- Glow-plug pre-heat
- Fuel Economy Assist System – FEA
- Engine Protection Feature – EPF
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Drain for fuel tank
- Remote engine oil drain
- 500-hour engine oil change interval
- 24 Volt system
- Engine oil sample port
- Battery disconnect switch
- Emergency engine stop
- External Fuel and DEF gauges
- Fan housing
- Fuel cooler
- Fuel filter restriction indicator
- Fuel shut-off valve
- Idle start
- Radiator, oil cooler, intercooler – protective screen
Upper Structure
- ISO mirrors – 3
- Cab ISO-Mounts – fluid and spring
- Upper mounted work light – 70 watt
- Swivel guard belly pan
- Center cover – over main CV
- Fuel tank belly pan
- Handrail – RH access
- ISO guard rails
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and tool box
Attachments
- Boom – 28 ft 5 in (8 700 mm)
- Arm – 21 ft 0 in (6.4 m)
- Heavy-duty bucket linkage
- Boom mounted work light – 70 watt
- Auxiliary pipe brackets
- Centralized grease fittings
- Attachment cushion valve
- Arm and boom regeneration
- Bucket anti-clatter device
- Chrome pins
- Easy Maintenance System (EMS) bushings
- Teardrop pin retention keepers
Undercarriage
- Long undercarriage
- 31.5 in (800 mm) steel shoes, triple semi-grouser
- Full overlap turntable bearing tub
- Single track chain guides
- Hydraulic track adjustment
- Sealed link chain
- Steps
- Carbody belly pan – swivel guard
- X-pattern carbody
- Lashing points – tie downs
- Extra Filter Kit:
- Engine oil filter
- Filter wrench
- Fuel filters
- Grease gun
- Green plug oil drain hose for engine oil drain
- Hydraulic return filter
- Pilot circuit hydraulic filter
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Optional Equipment
Hydraulics
- Auxiliary hydraulics:
- Secondary low-flow/joystick activated
- Proportional hydraulic controls
- Hose Burst Check Valve – HBCV
Engine
- Refueling pump
- Air pre-cleaner – Cyclone
- High ambient temperature cooling package
Undercarriage
- Track guides – triple
Machine Control
- Leica iCON iXE2 – 2D System
- Leica iCON iXE3 – 3D System
Operator Environment
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
- Front rock guard – vertical bars
- Two piece/OPG 1
- Front rock guard – vertical bars
- One piece/OPG 2
- Vandal guard (front window) with common key
- Rain deflector – not available with front guards
- Sun visor
- Side-view camera
- LED Package: Includes 1 Side view camera and 6 LED Lights – 2 front cab mounted, 2 rear mounted and 1 mounted on each sideed on each side
