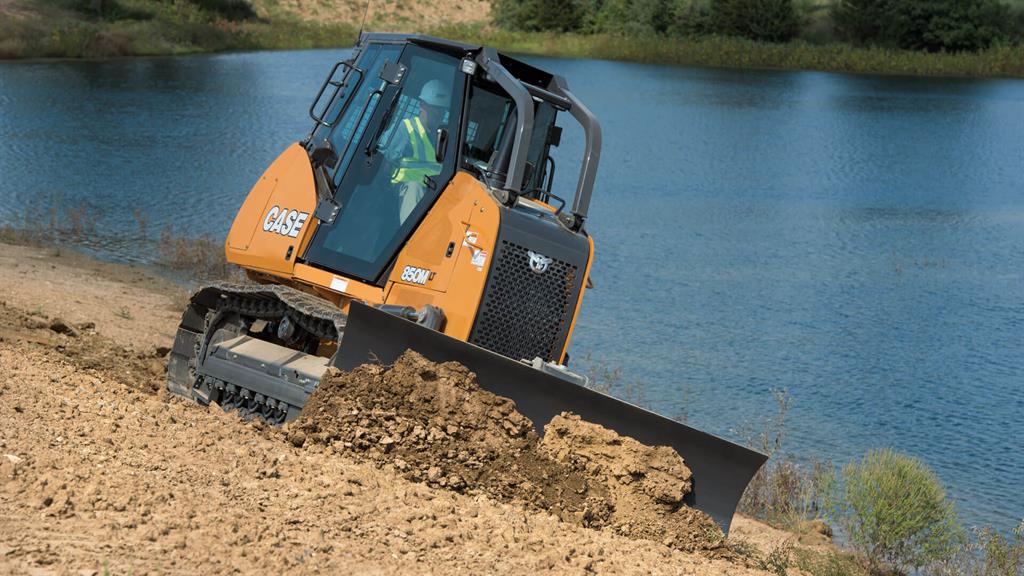

The CASE 850M dozer pushes with best-in-class drawbar pull and horsepower, features industry-leading visibility down to the blade, tracks and work area — and provides excellent control customization and load management for tackling heavy earthmoving and fine grading. The dozer is available in numerous track and blade configurations to meet specific applications — all compatible with a full range of machine control/grade control systems and the all-new CASE factory-fit option.
Productivity
Best-in-class horsepower and drawbar pull ensures you always have the power and tractive effort to get the job done. Match that with excellent control customization and a load monitoring system that automatically adjusts performance to movement and the load on the blade — and the 850M is extremely powerful, efficient and versatile. The 850M meets emissions regulations through a selective catalytic reduction (SCR)-only system which, as an aftertreatment solution, ensures that all productive power is put towards the work.
Fuel Efficiency
The 850M allows operators to adjust shuttle (forward-to-reverse) and steering sensitivity to Smooth, Moderate or Aggressive to match conditions on the site. And an advanced load monitoring system automatically reduces track speed (increasing torque) with a heavier load on the blade, and increases track speed (reducing torque) with a lighter load on the blade, ensuring that the machine is working at optimal power and efficiency at all times.
Comfort and Visibility
CASE M Series dozers provide some of the industry’s best sight lines down to the blade, the tracks and the worksite with excellent visibility and lots of glass from floor to ceiling. A true positive-pressure cab with advanced sealing helps keep out dirt, dust and noise — creating a working environment with one of the industry’s lowest sound ratings. And an “isolated” design further reduces cab vibration and provides a smoother ride.
Serviceability
The 850M features easy access and grouped service points — and newly enhanced CASE SiteWatch™ telematics provides insight into machine performance, maintenance intervals and more — allowing you to stay ahead of service and achieve optimal uptime.
For more information, check out the 850M brochure.
Standard Equipment
Operator Environment
- Optional ROPS cab
- Single lever control for speed, steering and direction
- Cloth air suspension seat w/ back adjustment
- Retractable 3 in (76 mm) seat belt
- Adjustable armrest
- Two foot rest
- Rearview mirror
- Two door windshield wipers
- Dome light
- 12-volt accessory outlet
- Headliner
- Floor mat
- Rear Wiper
- Radio
- Heat/AC
- Warning lights:Air filter; Alternator; Diagnostic fault indicator; Engine coolant temperature; Engine oil pressure; Hydraulic filter; Low fuel level; Park brake engaged; Service soon indicator; Transmission filter; Transmission charge pressure; Transmission temperature
- Gauges: Battery voltage; Fuel level; Digital hour meter/tachometer/diagnostic/service reminder; Transmission oil temperature; Transmission speed indicator; Water temperature
- Audible warnings: Engine coolant temperature; Engine oil pressure; Low fuel level; Transmission charge pressure; Temperature/hydraulic temperature
Drivetrain
- Dual path infinitely variable, single-lever controlled hydrostatic drive, with electronic straight tracking, power turns and counter-rotation
- Final drive: Triple reduction; helical gear/planetary decelerator with hydrostatic drive retardation
- Spring-applied hydraulic release parking brake
Blade
- 52°– 60° variable pitch, with integral adjustment tool
- Single lever control for blade lift, angle and tilt
Undercarriage
- Hydraulic track adjusters
- Easy clean track covers
- Sealed and Lubricated Track Chain (SALT)
- Permanently lubricated track and carrier rollers
- Track adjuster guard
- Track guides – front and rear
- Shock resistance idler mounting
Engine
- F4HFE413P*A008
- Tier 4 Final Certified
- Automatic fan belt tensioner
- Integral engine oil cooling
- Fuel filter
- Dual element air cleaner
- 120 amp alternator
- 925 CCA 24-volt battery
- Coolant Heated DEF Lines
- Anti-freeze to -34° F
- Pusher fan
- Hinged engine side panels
Other
- Backup alarm
- Horn
- Work lights: 2 front/1 rear
- Master disconnect switch
- Mirror
- Turbine Pre-cleaner
- Front pull hook
- Rear tow hook
- Sweeps
- Environmental Drain
- 4-Spool Hydraulic Valve with plugs for field installed Ripper
- Transport Protection
- Anti-vandalism package
- Rear Transmission Guard
ProCare
- CASE ProCare – Full Machine Protection Factory Warranty (3-yr/3000-hr), Planned Maintenance (3-yr/2000-hr) and SiteWatch telematics
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Optional Equipment
Rear Mounted Equipment
- Ripper – 5 position with 3 shanks
- Hydraulic pump with PTO
- Drawbar
Blades
- 104 in (2 642 mm)
- 112 in (2 855 mm)
- 120 in (3 058 mm)
- 124 in (3 160 mm)
Guards
- Center rock guard
Precision
- Factory Fit CoPilot
- Factory Fit 2D Laser
- Factory Fit 3D GNSS
- Leica Blade Guidance Ready
- Trimble Blade Guidance Ready
- Topcon Blade Guidance Ready
Screens
- Radiator brush screen
- Sandblast screen
Other
- CASE Extended Life Track
- Additional work lights
- Front counterweight
- Rearview mirror
- Severe Cold Weather Package
- Cold start aid – grid heater: with dual 12-volt battery
