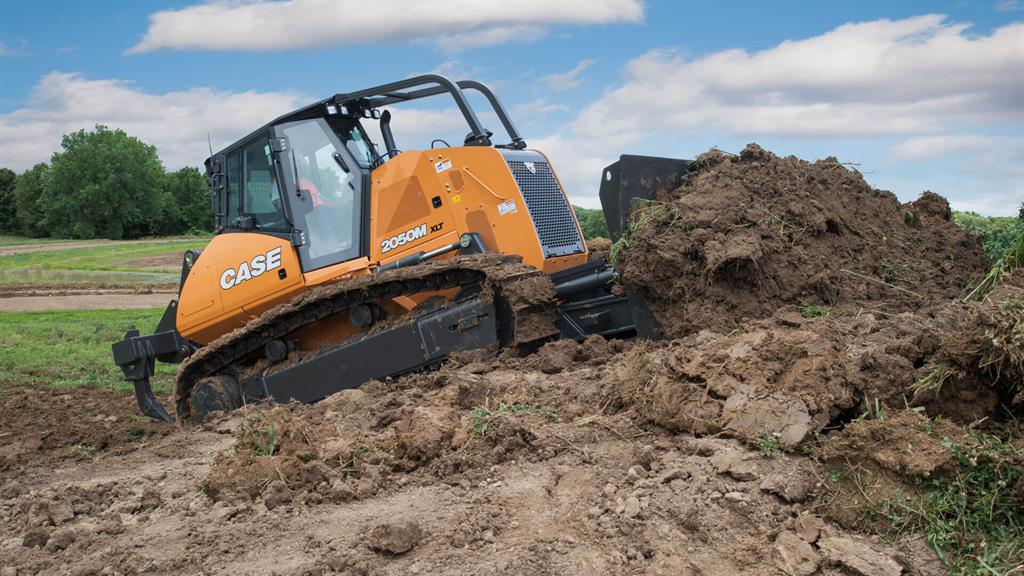

The most power and performance in the CASE lineup and in its size class. The 2050M is the dozer you need for large cuts and mass earthmoving — and is fully compatible with an entire range of machine control/grade control solutions including all-new optional factory fit machine control. Match that with industry-leading visibility, a clean and comfortable operator station, and powerful settings to dial in machine performance for the heaviest work — and the 2050M wins in strength, controllability and precision.
Productivity
214 horsepower and more than 81,000 pounds of drawbar pull make the 2050M a beast for all applications, whether land clearing, site development or landfill operations. A robust undercarriage matched with numerous track and blade configurations — as well as specialty guarding, kits and accessories — make the 2050M extremely versatile no matter how heavy the work.
The 2050M meets emissions regulations through a selective catalytic reduction (SCR)-only system that, as an aftertreatment solution, ensures that all productive power is put towards the work.
Fuel Efficiency
The 2050M allows operators to adjust shuttle (forward-to-reverse), steering and blade sensitivity to Smooth, Moderate or Aggressive to match conditions on the site. An advanced load monitoring system automatically reduces track speed (increasing torque) with a heavier load on the blade, and increases track speed (reducing torque) with a lighter load on the blade, ensuring that the machine is working at optimal power and efficiency at all times. Additional fingertip controls for Blade Shake (shedding material off the blade) and Fine Grading (cutting blade speed by 40 percent for greater control) further improve performance.
Comfort and Visibility
CASE M Series dozers provide some of the industry’s best sight lines down to the blade, the tracks and the worksite with excellent visibility and lots of glass from floor to ceiling. A true positive-pressure cab with advanced sealing helps keep out dirt, dust and noise — creating a working environment with one of the industry’s lowest sound ratings. And an “isolated” design further reduces cab vibration and provides a smoother ride.
Serviceability
The 2050M features easy access and grouped service points — and newly enhanced CASE SiteWatch™ telematics provides insight into machine performance, maintenance intervals and more — allowing you to stay ahead of service and achieve optimal uptime.
For more information, check out the 2050M brochure.
Standard Equipment
Operator Environment
- Fully enclosed ROPS cab
- Single lever controlfor speed, steering and direction
- Cloth air suspension seat w/ back adjustment
- Retractable 3 in (76 mm) seat belt
- Adjustable armrest
- Two foot rest
- Rearview mirror
- Two door windshield wipers
- Dome light
- 12-volt accessory outlet
- Headliner
- Floor mat
- Rear Wiper
- Radio
- Heat/AC
- Warning lights: Air filter; Alternator; Diagnostic fault indicator; Engine coolant temperature; Engine oil pressure; Hydraulic filter; Low fuel level; DEF fluid level; Park brake engaged; Service soon indicator; Transmission filter; Transmission charge pressure
- Gauges: Battery voltage; Fuel level; Digital hour meter/tachometer/diagnostic/service reminder; Transmission oil temperature; Transmission speed indicator; Water temperature; Diesel Exhaust Fluid (DEF) level
- Audible warnings: Engine coolant temperature; Engine oil pressure; Low fuel level; Transmission charge pressure; Temperature/hydraulic temperature
Drivetrain
- Dual path infinitely variable, single-lever controlled hydrostatic drive, with electronic straight tracking and counter-rotation
- Final drive: Triple reduction; helical gear/planetary decelerator with hydrostatic drive retardation
- Automatic spring-applied parking brake
Blade
- 55° – 60° variable pitch, with integral adjustment tool
- Single lever electro-hydraulic control for blade lift, angle and tilt
Undercarriage
- Hydraulic track adjusters
- Sealed and Lubricated Track Chain (SALT)
- Permanently lubricated track and carrier rollers
- Track adjuster guard
- Track guides – front and rear
- Robust Smooth One Piece Track Frames with Easy Clean-out
- Robust Rock Guards
- Enhanced Track Recoil System
- Central Grease point for Pivot Shaft and Equalizer Beam
Engine
- F4HFE613J
- Tier 4 Final Certified
- V-Shape Cooling package with hydraulic-driven reversing fan
- Integral engine oil cooling
- Fuel filter
- Dual element radial seal air cleaner
- 120 amp alternator
- (2) 950 CCA 12-volt batteries
- Coolant Heated DEF Lines
- Hinged engine side panels
Other
- Backup alarm
- Horn
- Work lights: 2 front/1 rear
- Ground Level Master disconnect switch
- Mirror
- Turbine Pre-cleaner
- Front pull hook
- Rear tow hook
- Environmental Drain
- Grid Heater/Cold Start
- Transport Protection
- Anti-vandalism package
- Rear Transmission guard
ProCare
- CASE ProCare – Full Machine Protection Factory Warranty (3-yr/3000-hr), Planned Maintenance (3-yr/2000-hr) and SiteWatch telematics
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Optional Equipment
Hydraulics
- 4-spool hydraulic valve for field-installed ripper
- 3-spool hydraulic valve without plugs for field-installed ripper
- 3-spool hydraulic valve with plugs
Rear Mounted Equipment
- Ripper – 2 position with 3 shanks
- Drawbar
- Drawbar with step
Blades
- PAT – 142 in (3607 mm) High Visibility Blade 48 in height
- PAT – 142 in (3607 mm) 54 in height
- PAT – 157.5 in (4064 mm) 54 in height
- Folding PAT – 160 in (4064 mm)
- HS Straight (WT/LGP) – 154 in (3900 mm)
- Semi-U – 135 in (3422 mm)
- Larger Bull Dozer LGP
- Semi-U Blade – 157 in (3988 mm)
- HS Straight (XLT) – 131 in (3334 mm)
Operator Environment
- Cab air quality system
Guards
- CAB canopy brush guard
- Full length rock guards
- Sweeps
- Waste Handler Guarding Package
Screens
- Cab rear screen
Precision
- Factory Fit CoPilot
- Factory Fit 2D Laser
- Factory Fit 3D GNSS
- Universal Blade Guidance: Compatible with Leica, Trimble and Topcon
- Leica Blade Guidance Ready
- Trimble Blade Guidance Ready
- Topcon Blade Guidance Ready
Other
- CASE Ultra Life Track
- Additional work lights
