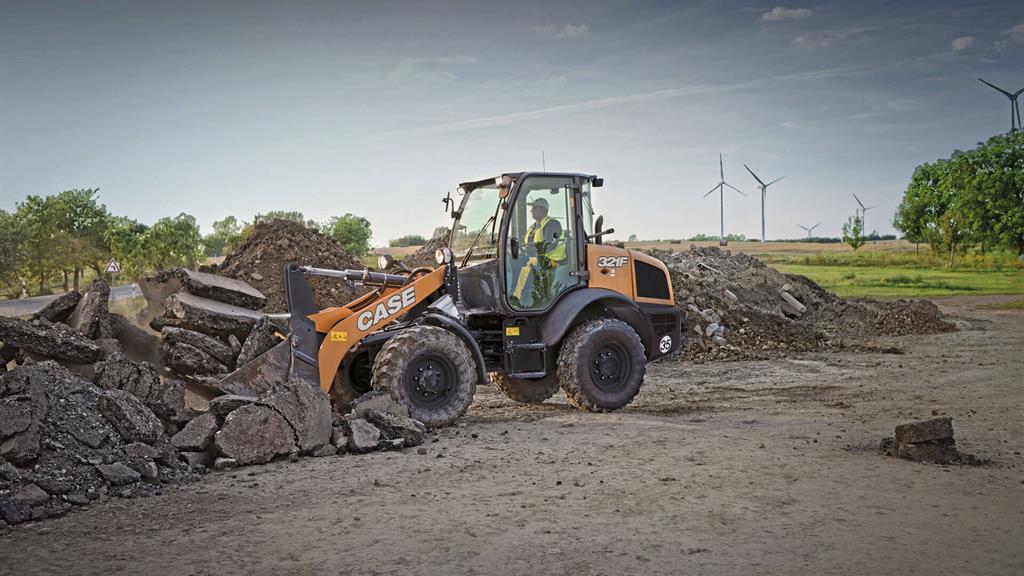

The largest in our lineup of Tier 4 Final F Series Compact Wheel Loaders is the stout 321F with Z-Bar linkage. The 321F delivers a full-height lifting capacity of more than 8,000 lbs. (3,640 kg) and bucket breakout force of up to 11,000 lbs while still maintaining a low overall height of only 8 ft. 10 in. (2,681 mm). Suspension upgrades, a standard skid steer coupler and improved auxiliary hydraulics help you tackle more tasks while an ergonomically designed cab keep operators comfortably in control.
Productivity
With a lower center of gravity and Z-bar linkage, the 321F has improved lifting power and breakout force. The suspension has been enhanced with a 20 degree oscillating rear axle that works independently of the cab for greater operator comfort and load control. An optional front and rear differential lock provides on-demand traction in loose or uneven terrain, and the high-speed option lets you travel at speeds up to 21.8 mph (35 km/h).
The High Flow option comes with Creep Speed, which provides a maximum hydraulic flow at constant speed in the 0 to 3.4 mph (5.5km/h) range, ideal for running attachments like cold planers and snow blowers. The front electrical socket and Return Depressurized Drain complete the package.
Fuel Efficiency
The 321F features a maintenance-free Tier 4 emission solution. This means no regeneration downtime, no Diesel Particulate Filters (DPFs) to replace, no extreme exhaust temperatures, no after-treatment fluids to add. Just get in and go. It’s the best match for versatile, on-the-go machines of this size.
Comfort and Visibility
The F Series cab offers more space, greater all-around visibility, and an intuitive control interface to simplify operation. And with Creep Speed, Return-to-Dig and Ride Control™ options, it’s even easier to maximize productivity throughout the day. Air Seat, Bluetooth Radio and LED worklight options provide an enjoyable work environment for operators.
Serviceability
With a tilt-up hood and friendlier access to daily checkpoints, the F Series Compact Wheel Loaders were redesigned to simplify serviceability. Radiators, filters, hydraulics and the engine are all easily accessible so routine maintenance can be done in a matter of minutes.
For more information, check out the 321F brochure.
Standard Equipment
Operator Environment
- Base and Deluxe Cab w/ heater
- Key start
- Articulated power steering w/ tilt column
- Full adjustable cloth suspension seat
- Foot throttle
- Single joystick w/ electronic speed shift control F/N/R switch and proportional loader control
- Cup holder
- Retractable seat belt
- Storage tray on Deluxe Cab
- Sun screen – front, Opening side window
- Dome light
- Wipers – front and rear
- 12-volt auxiliary power
- Lighter cigar and ashtray
- Pocket cellular phone
- Coat hook
- External rearview mirrors
- Loader control lockout
- Electronic information center
- Displays/Gauges:
- Vehicle speed
- Hourmeter
- Floating functionality on
- Clock
- Vehicle directions
- Gear number engaged
- PM Catalyst icons
- Indicator lights:
- Main hydraulic enabled
- Turn light – left and right
- Rear work lamps
- Work lamps
- Main high beam
- Side lights
- Stop
- Warning signal
- Rabbit
- Hand brake
- Brake fluid level
- Quick coupler on
- Ride Control on
- Creep speed
- PM Catalyst
- Low fuel level
- Clogging air filter
- Engine oil pressure
- Glow plug
- Alternator changing
- Audible alarms:
- Caution alarm
- Critical alarm
- Backup alarm
- Horn
- NOTE: If equipped w/ option
Engine
- FPT F5H FL463 A*F004
- Fuel filter with water trap
- Dual element air cleaner
Drivetrain
- 4-wheel drive
- Open – front and rear axles
- Hydrostatic transmission
- Single joystick with electronic speed shift control F/N/R switch and proportional loader control
- Outboard planetary axles
- Hydraulic wet disc brakes
- Mechanical parking brake
Hydraulics
- Hydraulic remote control
- 3-spool loader control valve
- 3 Diagnostic quick couplers
Other
- Front and rear fenders
- Lights:
- 2 Front driving headlights – high/low beam
- 2 Rear flood lights
- 2 Stop tail lights and backup light
- Front and rear turn signal/flash
- Drawbar pin
- Articulation locking pin
- Tie-down and Lift-up point – front and rear
- Backup alarm
- Wired for radio
- Bucket position indicator
Loader
- Z-Bar:
- Z-Bar loader linkage
- Single control for lift and tilt
- Positive hold float
- Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible
Optional Equipment
Loader
- Additional auxiliary flow:
- Max. 22.5 gpm @ 2500 RPM @ 3,626 psi
- (Max. 85 L/min @ 2500 RPM @ 25 000 kPa)
- Optional High flow:
- Max. 34.3 gpm @ 2500 RPM @ 2,901 psi
- (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)
- Buckets – see performance data:
- General purpose standard
- General purpose light material
- 4-IN-1®
- STD forks
- Tiltable and telescopic steering wheel
- Auto Ride Control
- Return to dig
Operator Environment
- Creep speed 0 – 3.1 mph (5 kph)
- TeleScop adjustable steering column on Deluxe Cab
- Rotating beacon
- Limited slip – front and rear axles
- 100% lock – front and rear axles
- Mechanical coupler
- Horizontal pin coupler
- Air conditioning
- Radio ready antenna and speakers
Tires
- 405/70 R20 SPT9 L2 DUNL
- 14.5-20MPT-04 MITAS
- 365/80 R20 SPT L2(DL) – Standard
- 365/80 R20 EM MITAS
- 405/70 R20 EM MITAS
Other
- ool box
- Counterweight: 330 lb (150 kg), Mounts on rear chassis
