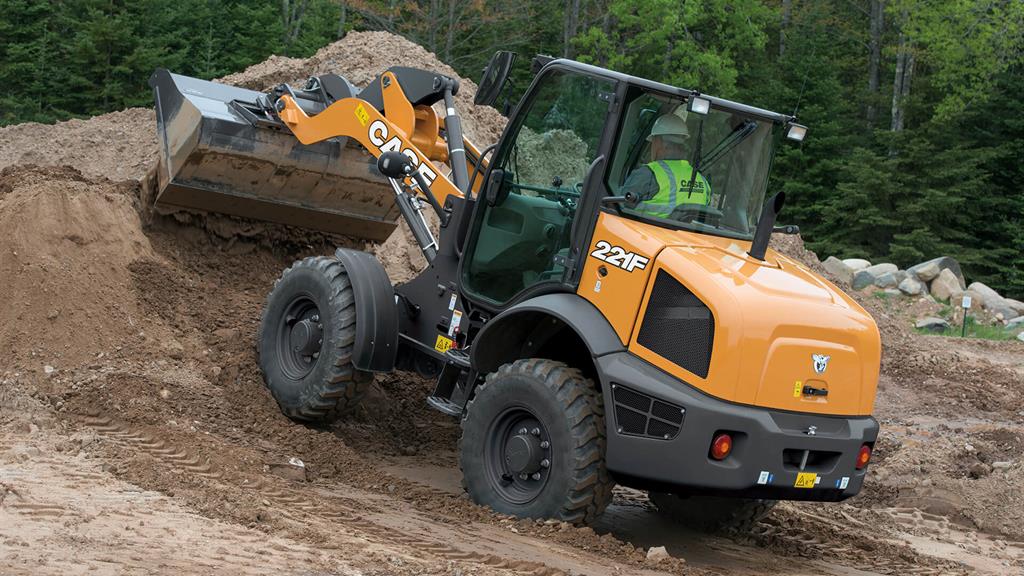

The 221F Compact Wheel Loader is designed to do more on the job while requiring less from you. A strong, compact frame with Z-Bar linkage improves stability for greater leverage and load control while a Tier 4 emission solution helps meet emissions regulations without additional maintenance needs. Many other features provide more speed back into the pile, greater precision in close quarters, better material retention and enhanced attachment compatibility thanks to a standard skid steer coupler. All, of course, with the durability you expect from CASE.
Productivity
With a lower center of gravity and Z-bar linkage, the 221F has improved lifting power and breakout force. The suspension has been enhanced with a 20-degree oscillating rear axle that works independently of the cab for greater operator comfort and load control. High speed axle options provide travel speeds up to 21.8 MPH (35 KM/H), including HS limited slip axles which provides on-demand traction in loose or uneven terrain, Powering the 221F is a gear pump with a choice two flow outputs, standard 85l/min or the High Flow pump producing 130 l/min. The high-flow pump and creep speed transmission are perfectly matched for demanding applications like snow-blowing or cold planning. A proportional loader control gives operators even greater command. Plus, Connect Under Pressure (CUP) manifolds and a hydraulic coupler make switch out quick and easy.
Fuel Efficiency
The 221F features a maintenance-free Tier 4 emission solution. This means no regeneration downtime, no Diesel Particulate Filters (DPFs) to replace, no extreme exhaust temperatures, no after-treatment fluids to add. Just get in and go. It’s the best match for versatile, on-the-go machines of this size.
Comfort and Visibility
F Series cab offers more space, greater all-around visibility, and an intuitive control interface to simplify operation. With Creep Speed, Return-to-Dig and Ride Control™, air suspension seat, and Bluetooth radio options, it’s even easier to maximize productivity throughout the day. LED worklights helps keep production levels high and safe, even in low-light conditions.
Serviceability
With a tilt-up hood and friendlier access to daily checkpoints, the F Series Compact Wheel Loaders were redesigned to simplify serviceability. Radiators, filters, hydraulics and the engine are all easily accessible so routine maintenance can be done in a matter of minutes.
For more information, check out the 221F brochure.
Standard Equipment
Operator Environment
- Base and Deluxe Cab w/ heater
- Key start
- Articulated power steering w/ tilt column
- Full adjustable cloth suspension seat
- Foot throttle
- Single joystick w/ electronic speed shift control F/N/R switch and proportional loader control
- Cup holder
- Retractable seat belt
- Storage tray on Deluxe Cab
- Sun screen – front, Opening side window
- Dome light
- Wipers – front and rear
- 12-volt auxiliary power
- Lighter cigar and ashtray
- Pocket cellular phone
- Coat hook
- External rearview mirrors
- Loader control lockout
- Electronic information center
- Displays/Gauges:
- Vehicle speed
- Hourmeter
- Floating functionality on
- Clock
- Vehicle directions
- Gear number engaged
- PM Catalyst icons
- Indicator lights:
- Main hydraulic enabled
- Turn light – left and right
- Rear work lamps
- Work lamps
- Main high beam
- Side lights
- Stop
- Warning signal
- Rabbit
- Hand brake
- Brake fluid level
- Quick coupler on
- Ride Control on
- Creep speed
- PM Catalyst
- Low fuel level
- Clogging air filter
- Engine oil pressure
- Glow plug
- Alternator changing
- Audible alarms:
- Caution alarm
- Critical alarm
- Backup alarm
- Horn
- NOTE: If equipped w/ option
Engine
- FPT F5H FL463 A*F004
- Fuel filter with water trap
- Dual element air cleaner
Loader
- Z-Bar:
- Z-Bar loader linkage
- Single control for lift and tilt
- Positive hold float
- Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible
Drivetrain
- 4-wheel drive
- Open – front and rear axles
- Hydrostatic transmission
- Single joystick with electronic speed shift control F/N/R switch and proportional loader control
- Outboard planetary axles
- Hydraulic wet disc brakes
- Mechanical parking brake
Hydraulics
- Hydraulic remote control
- 3-spool loader control valve
- 3 Diagnostic quick couplers
Other
- Front and rear fenders
- Lights:
- 2 Front driving headlights – high/low beam
- 2 Rear flood lights
- 2 Stop tail lights and backup light
- Front and rear turn signal/flash
- Drawbar pin
- Articulation locking pin
- Tie-down and Lift-up point – front and rear
- Backup alarm
- Wired for radio
- Bucket position indicator
Optional Equipment
Loader
- Additional auxiliary flow:
- Max. 22.5 gpm @ 2500 RPM @ 3,626 psi
- (Max. 85 L/min @ 2500 RPM @ 25 000 kPa)
- Optional High flow:
- Max. 34.3 gpm @ 2500 RPM @ 2,901 psi
- (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)
- Buckets – see performance data:
- General purpose standard
- General purpose light material
- 4-IN-1®
- STD forks
- Tiltable and telescopic steering wheel
- Auto Ride Control
- Return to dig
Operator Environment
- Creep speed 0 – 3.1 mph (5 kph)
- TeleScop adjustable steering column on Deluxe Cab
- Rotating beacon
- Limited slip – front and rear axles
- 100% lock – front and rear axles
- Horizontal pin coupler
- Air conditioning
- Radio ready antenna and speakers
Tires
- 14.5-20MPT-04 MITAS
- 365/80 R20 SPT9 L2(DL.)
- 365/70 R18 SPT9 L2 DUNL. – Standard
- 12.5-20 MPT10 PR L2 GDY.
- 12.5-20 10PRMPT04TBL MITAS
- 365/80 R20 EM MITAS
- 365/70 R18 EM MITAS
Other
- Tool box
- Counterweight: 330 lb (150 kg), Mounts on rear chassis
