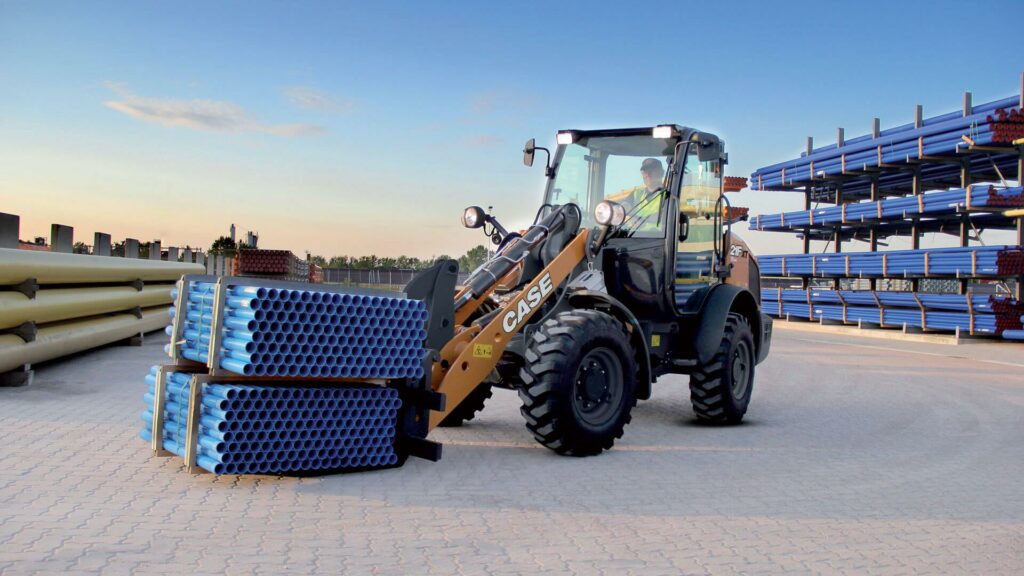

At only 8 ft. 9 in. (2.46 m) high, the 21F offers a more compact design that provides greater stability and leverage as well as a higher bucket dump height than previous generations. For greater versatility, it’s available with Z-Bar or Tool Carrier / Parallel Lift linkage and is compatible with skid steer attachments. This compact-yet-powerful model also meets emissions regulations with a maintenance-free Tier 4 emissions solution – another way the F Series helps you do more while requiring less.
Productivity
With a lower center of gravity, the 21F has improved lifting power and breakout force. The suspension has been enhanced with an oscillating rear axle that works independent of the cab for greater operator comfort and load control; an optional limited-slip differential provides on-demand traction in loose or uneven terrain. With 29% greater standard auxiliary hydraulic flow than the E Series, you have more power for attachments and a proportional loader control gives operators greater command. Plus, Connect Under Pressure (CUP) manifolds and a hydraulic coupler make switch out quick and easy.
Fuel Efficiency
The 21F features a maintenance-free Tier 4 emissions solution that avoids regeneration. No regeneration downtime, no Diesel Particulate Filter (DPF) to replace, no extreme exhaust temperatures, no after-treatment fluids to add. Just get in and go. It’s the best match for versatile, on-the-go machines of this size.
Comfort and Visibility
F Series cab offers more space, greater all-around visibility, and an intuitive control interface to simplify operation. And with Creep Speed, Return-to-Dig and Ride Control™, air suspension seatand Bluetooth radio options, it’s even easier to maximize productivity. LED worklights help keep production levels high and safe, even in low-light conditions.
Serviceability
With a tilt-up hood and friendlier access to daily checkpoints, the F Series Compact Wheel Loaders were redesigned to simplify serviceability. Radiators, filters, hydraulics and the engine are all easily accessible so routine maintenance can be done in a matter of minutes.
For more information, check out the 21F brochure.
Standard Equipment
Operator Environment
- Base and Deluxe Cab w/ heater
- Key start
- Articulated power steering w/ tilt column
- Full adjustable cloth suspension seat
- Foot throttle
- Single joystick w/ electronic speed shift control F/N/R switch and proportional loader control
- Cup holder
- Retractable seat belt
- Storage tray on Deluxe Cab
- Sun screen – front, Opening side window
- Dome light
- Wipers – front and rear
- 12-volt auxiliary power
- Lighter cigar and ashtray
- Pocket cellular phone
- Coat hook
- External rearview mirrors
- Loader control lockout
- Electronic information center
- Displays/Gauges:
- Vehicle speed
- Hourmeter
- Floating functionality on
- Clock
- Vehicle directions
- Gear number engaged
- PM Catalyst icons
- Indicator lights:
- Main hydraulic enabled
- Turn light – left and right
- Rear work lamps
- Work lamps
- Main high beam
- Side lights
- Stop
- Warning signal
- Rabbit
- Hand brake
- Brake fluid level
- Quick coupler on
- Ride Control on
- Creep speed
- PM Catalyst
- Low fuel level
- Clogging air filter
- Engine oil pressure
- Glow plug
- Alternator changing
- Audible alarms:
- Caution alarm
- Critical alarm
- Backup alarm
- Horn
- NOTE: If equipped w/ option.
Engine
- FPT F5H FL463 B*F001
- Fuel filter with water trap
- Dual element air cleaner
Loader
- XT:
- Parallel loader linkage
- Single control for lift and tilt
- Positive hold float
- Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible
- Z-Bar:
- Z-Bar loader linkage
- Single control for lift and tilt
- Positive hold float
- Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible
Drivetrain
- 4-wheel drive
- Open – front and rear axles
- Hydrostatic transmission
- Single joystick with electronic speed shift control F/N/R switch and proportional loader control
- Outboard planetary axles
- Dry disc brakes
- Mechanical parking brake
Hydraulics
- Hydraulic remote control
- 3-spool loader control valve
- 3 Diagnostic quick couplers
Other
- Front and rear fenders
- Lights:
- 2 Front driving headlights – high/low beam
- 2 Rear flood lights
- 2 Stop tail lights and backup light
- Front and rear turn signal/flash
- Drawbar pin
- Articulation locking pin
- Tie-down and Lift-up point – front and rear
- Backup alarm
- Wired for radio
- Bucket position indicator
Optional Equipment
Loader
- Additional auxiliary flow:
- Max. 17.7 gpm @ 2500 RPM @ 3,626 psi
- (Max. 67 L/min @ 2500 RPM @ 25 000 kPa)
- Buckets – see performance data:
- General purpose standard
- General purpose light material
- 4-IN-1®
- STD forks
- Tiltable and telescopic steering wheel
- Return to dig
Tires
- 12.5-18 1PRMPT-04TBL MITAS
- 335/80 R18 EM MITAS
- 335/80 R18 SPT9 L2 DUNL – Standard
- 365/70 R18 EM MITAS
- 365/70 R18 SPT9 L2 DUNL
Operator Environment
- Creep speed 0 – 3.1 mph (5 kph)
- TeleScop adjustable steering column on Deluxe Cab
- Rotating beacon
- Limited slip – front and rear axles
- Mechanical coupler
- Horizontal pin coupler
- Air conditioning
- Radio ready antenna and speakers
Other
- Tool box
- Counterweight: 330 lb (150 kg), Mounts on rear chassis
