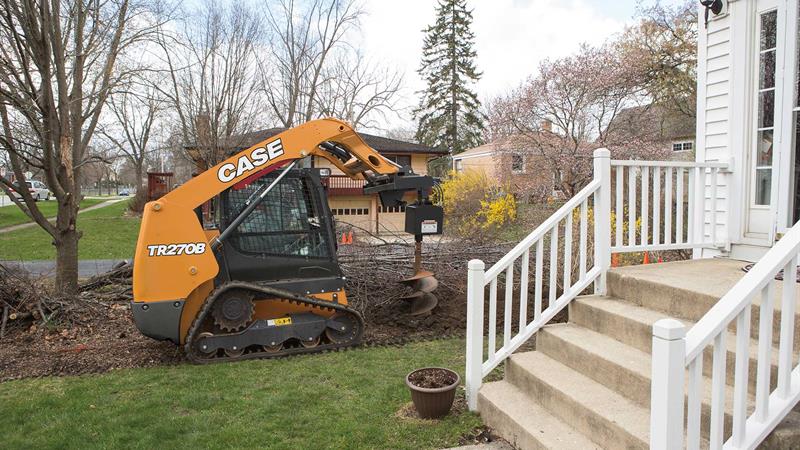

Everything about the CASE TR270B is easy. Easy to transport at 8,200 pounds. Easy on existing turf with low ground pressure. Easy to operate with all new controls and a new 8-inch LCD multi-function display. Easy to spend all day in with one of the industry’s widest and most comfortable cabs. And, at 74 horsepower, easy to own and operate with a truly maintenance-free Tier 4 Final emissions solution.
Visibility & Comfort
CASE CTLs feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE CTLs feature one of the industry’s widest cabs, and new control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
Optimal Control
CASE compact track loaders are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. New electro-hydraulic models with the all-new 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
Productivity & Performance
At 2,700-pounds rated operating capacity (at 50 percent tipping load), 74 horsepower and 232 pound-feet of torque, the TR270B is a powerful, compact and efficient performer. Standard (3,050 psi and 24.2 gpm) and optional high-flow (3,050 psi at 32.4 gpm) auxiliary hydraulics make the TR270B excellent for a broad range of attachments and applications.
Ease of Ownership
All critical checks and service points are grouped at the rear of the machine for easy access, and the all-new 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. At 74 horsepower, the TR270B features a maintenance-free Tier 4 Final emissions solution that requires no fluids and no lifetime filter service or replacement (no diesel particulate filter (DPF).
For more information, check out the TR270B brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS Level 1 canopy w/ side screens
- Keyed start ignition
- Tilt ROPS/FOPS
- Rear window w/ emergency escape
- Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
- Hand and foot throttles
- Alarm package – back-up and horn
- Rearview mirror
- Headliner
- Dome Light
- Top window
- Cup holder
- 12V Power plug socket
- Foot rest
- Seat pocket
- Padded seat bar w/ integral armrests
- Loader control lockout system
- Electric parking brake control
- Operator’s compartment floor cleanout
- Proportional auxiliary hydraulic control – on joystick
- Advanced Instrument Cluster w/ digital hour meter, tachometer, Fuel level LCD bar graph w/ alarm, diagnostic features and security lockout
- Warning lights with alarms:Engine coolant temperature
- Engine oil pressure
- Engine malfunction
- Hydraulic charge pressure
- Hydraulic filter restriction
- Hydraulic oil temperature:Critical system stop
- Engine system
- Hydraulic system
- Electrical and diagnostic system
- Warning alarms:Battery voltage – plus display
- Oil service
- Indicator light:Engine preheat
- Parking brake
- Seat bar reminder
Loader
- Manual attachment coupler
- Radial lift geometry
- Loader lift arm support strut
- SAE operating load: 2,700 lbs
- Tipping load: 5,400 lbs
Tracks
- Rubber Tracks
Engine
- FPT F5H FL463 A*G001
- 207 CID (3.4 L) Turbo
- Tier 4 Final Certified
- Diesel Oxidation Catalyst (DOC)
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower:Gross: 74 hp (55 kW)
- Net: 68 hp (51 kW)
- Peak torque: 232 lb·ft (314 N·m)
- 120 amp alternator
- Dual element air cleaner
- Organic Acid Technology (OAT)
- Anti-freeze solution to -34º F
- Fuel tank – 19.5 gal (U.S.)
- Over and under radiator and oil cooler
- 3-stack after cooler/radiator/oil cooler configuration
- Glow plugs
- Integral engine oil cooler
- Fuel filter with water trap
- 1,000 CCA 12V battery
- Master electrical disconnect
Drivetrain
- 2-speed hydrostatic four wheel drive
- SAHR disc parking brake
Hydraulics
- Auxiliary hydraulics:@ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
- 6 micron oil filtration system
- 3-spool loader control valve
- Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
- Hydraulic circuit pedal lock
- Auxiliary function lockout override
- Loader lift lockout override
- Heavy-duty hydraulic oil cooler
- Loader arm float position
- Loader function lockout system
Other Standard Features
- Halogen lights – 2 front, 2 side, 2 rear flood
- Pre-wired for rotating beacon
- Lockable service access hood
- Single-point daily servicing
- Rear tail lights
- Remote oil drain
- Remote oil and fuel filters
- Block heater
- Debris ingression sealing
- Mounting points for add-on counterweights
Optional Equipment
Hydraulics
- High-flow auxiliary hydraulics – combined:@ 3,050 psi (210 bar) – 32.4 gpm (122.6 L/min)
- Second auxiliary hydraulics
- Hydraulic one-way self-leveling
- Ride control
Loader
- Auxiliary front electric control
- Hydraulic attachment coupler
Drivetrain
- Creep Speed Mode
Other
- Language decals
- Factory-installed tires
- Buckets
- Bolt-on bucket cutting edges
- Bolt-on heavy-duty bucket spill guard
- Special paint
- Offsite service arrangement
- Telematics
Service Parts
- 3 inch (76.2 mm) retractable seat belt
- Bolt-on heavy-duty bucket teeth
Operator Environment
- Enclosed cab:Fully sealed and pressurized – FSP
- Glass door with wiper and washer
- Sliding side windows – removable
- Ventilation system with integrated heater
- Heater and air conditioner
- AM/FM Bluetooth radio with 2 speakers
- Keyless start ignition
- 8 in Color LCD Display
- Economy Mode (auto idle shutdown)
- Auto Engine Protection Shutdown
- Electro-hydraulic controls:For drive/steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
- Mechanical hand controls
- Hand and foot controls:Hand controls the loader drive function and foot controls the bucket and boom
- Deluxe cloth, air suspension seat, with heater and lumbar support
- Demolition cab door with polycarbonate
- FOPS Level 2
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
Factory Supplied Attachments
- Add-on counterweights
- Road lights
- Rotating beacon
- Four-corner LED strobe
- 48 in (1.22 m) pallet forks
