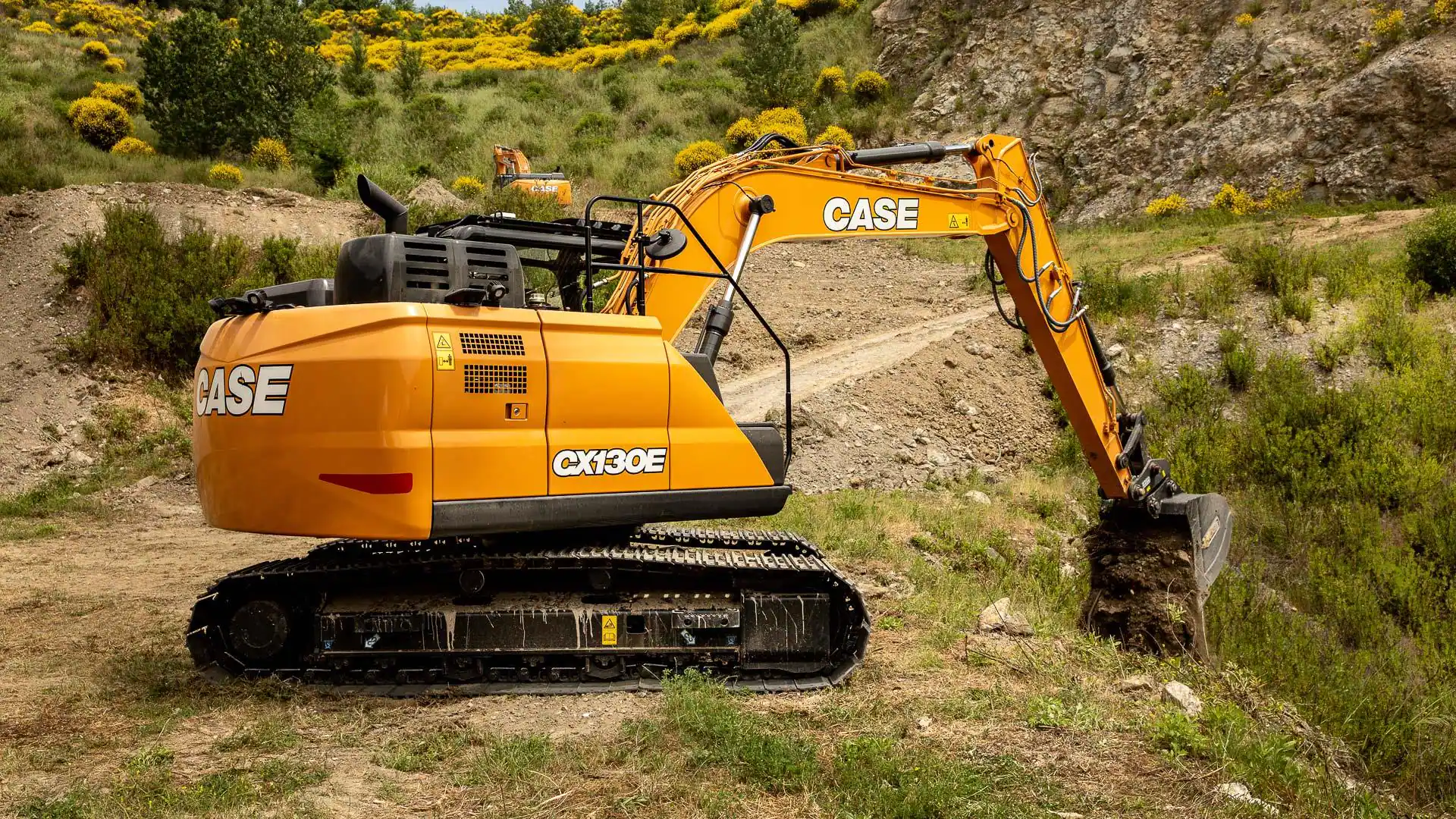

For more information, check out the CX130E brochure.
Standard Equipment
Operator Station
- ROPS protection
- FOPS guard OPG level 2
- Pressurized cab
- Tempered safety glass
- One-touch lock front window
- Sun visor & rain deflector
- A/C, heating and defrosting with automatic control
- Luch box & cool box, cup holders & ashtray
- Interior dome light
- Multi-adjustable low frequency air suspension console and tiltable seat with air springs and double acting hydraulic damper
- Sliding seat – 90 mm
- Seat belt with fasten detection
- Adjustable armrests
- Low-effort joystick controls
- Sliding cockpit – 80 mm
- Auxiliary select system
- Aux-in port for personal electronics
- Multifunction LED color monitor (10”), with silicon switches
- 22 selectable languages for monitor
- Anti-theft system (start code system)
- Split type floor mat
- 12-volt electric socket
- 24-volt cigarette lighter
- One-piece right hand window
- 4 halogen work lights (2 cab roof, 1 LH boom, 1 toolbox)
- Windshield wiper / washer
- Clear (Lexan) roof window with sunshade
- Storage compartments
- On-board diagnostic system
Fuel Economy Systems
- Eco mode
- Auto idle
- One-touch idle
- Idle shutdown
- Pump Torque Control (PTC)
- Boom Economy Control (BEC)
- Swing Relief Control (SRF)
- Spool Stroke Control (SSC)
- Boom Oil Regeneration (BOR)
Attachments
- Standard boom 4.63 m (CX130E) or 5.15 m (CX160E / CX180E)
- Long reach boom 7.4 m (CX130E Long Reach)
- Arm 2.50 m (CX130E) or 2.62 m (CX160E / CX180E)
- Long reach arm 5.3 m (CX130E Long Reach)
- Attachment types and names storable in the display
Undercarriage
- 600 mm steel triple grouser shoes
- 700 mm steel triple grouser shoes (only on CX130E Long Reach)
- Full overlap turntable bearing tub
- Sealed link chain
- Lashing points
Engine
- FPT NEF 4-cylinder turbo-charged diesel
- Stage V
- Selective Catalytic Reduction on Filter (SCRoF)
- Diesel Oxidation Catalyst (DOC)
- EGR-free
- VGT turbocharger
- Electronic fuel injection
- High pressure common rail system
- Neutral safety start
- Auto engine warm up, emergency stop
- Glow-plug pre-heat
- EPF (Engine Protection Feature)
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Green plug oil drain
- 1,000 hour engine oil and fuel filters change interval
- 24-volt system
- Battery disconnect switch
- High ambient temperature cooling package
- External fuel and AdBlue gauges
- Fuel cooler
- Fuel filter + fuel prefilter with water accumulation indicator
- Fuel shut-off valve
- Idle start
- Radiator, oil cooler, intercooler – protective screen
- Refueling pump
Upper Structure
- ISO mirrors
- Handrail – RH access
- ISO guard rails
- Isolation mounted cab (fluid and spring)
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and toolbox
- Rear and side view safety camera
Hydraulics
- Hydraulic flow control balance
- Electronically controlled hydraulic pumps
- Auto power boost
- Auto travel speed change
- 4 selectable work modes
- Overload warning device
- ISO pattern controls
- Pre-set auxiliary pump settings
- Switch controlled auxiliary selection
- Auxiliary valve
- Hydraulic filter restriction indicator
- Oil cooler
- 5,000 hour hydraulic oil change interval
- 2,000 hour hydraulic filter change interval
- Hydraulic quick coupler provision
- Hydraulic fluid supply port with air breather
Telematics
- SiteConnect module and 3 years advanced SiteWatch subscription with remote monitoring
Optional Equipment
Hydraulics
- Clamshell circuit
- Low-flow circuit, proportional control (n.a. on CX130E Long Reach)
- Single acting hammer circuit with electrical proportional control
- Multifunction (hammer/high flow) circuit with electrical proportional control (n.a. on CX130E Long Reach)
- Double acting circuit with electrical proportional control (only on CX130E Long Reach)
Upper Structure
- ISO mirrors
- Handrail – RH access
- ISO guard rails
- Isolation mounted cab (fluid and spring)
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and toolbox
- Rear and side view safety camera
Engine
- Engine oil and hydraulic oil sample port
Undercarriage
- 500 / 700 mm steel triple grouser shoes (CX130E / CX160E) or 700 / 800 mm steel triple grouser shoes (CX180E)
- 500 mm rubber link chain (CX130E)
- Triple track (CX160E / CX180E) or double track guide (CX130E)
Operator Station
- Clamshell circuit
- Low-flow circuit, proportional control (n.a. on CX130E Long Reach)
- Single acting hammer circuit with electrical proportional control
- Multifunction (hammer/high flow) circuit with electrical proportional control (n.a. on CX130E Long Reach)
- Double acting circuit with electrical proportional control (only on CX130E Long Reach)
Attachments
- HD boom 4.63 m (CX130E)
- Arm HD 2.10 / 3.01 m (CX130E) or 3.05 m (CX160E / CX180E)
