The backhoe that set the standard now comes standard with more of the features that operators and businesses want. Fuel-saving ECO Mode, the precision of ProControl, SiteWatch™ Telematics – all included. And an optional PowerDrive transmission gives you even greater responsiveness and speed around the jobsite. Whether in rental, landscaping or looking to add a do-it-all machine to your construction fleet, the CASE 580N backhoe brings versatile, powerful and efficient performance.
Productivity

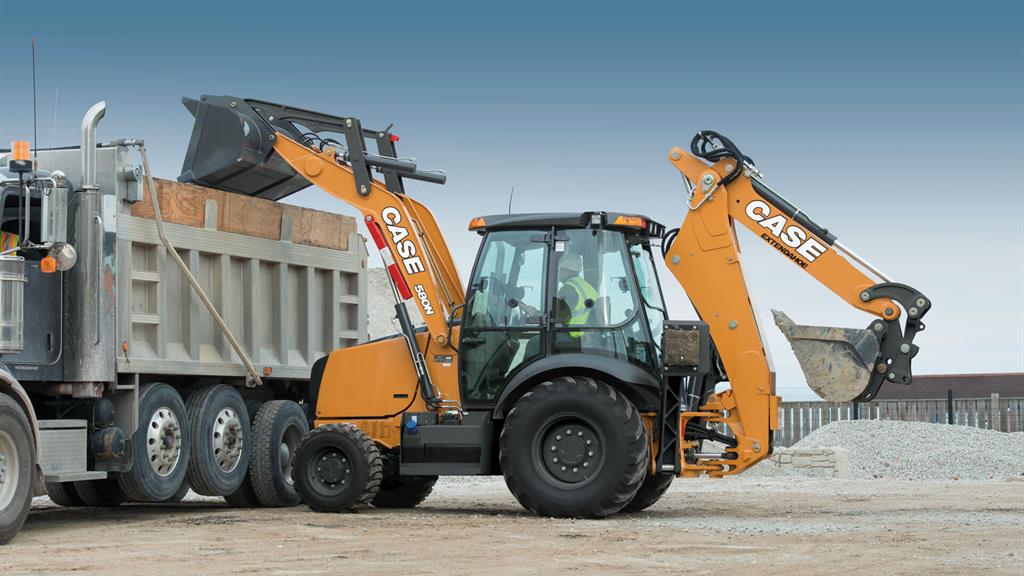

Long, heavy-duty loader arms with dual in-line cylinders can lift more than 6,800 lb. and easily clear dump truck walls, and with the backhoe’s universal coupler option works with most attachments (factory-installed thumb also available). The Comfort Steer option cuts time by cutting lock-to-lock turns in half for repetitious loading jobs. For load-and-carry work or during travel, the exclusive over-center design and Ride Control option help reduce material-spilling bounce of the machine and the bucket, and with automatic drive engagement of the optional PowerDrive transmission, you’ll have responsive speed into the pile and around the site. With the Extendahoe® configuration, the backhoe can achieve depths of over 18 feet and with the standard ProControl system, any operator can precisely control the boom for faster cycles.
Fuel Efficiency
We know saving fuel is important. That’s why our Economy Package comes standard. It includes ECO Modes for the loader and backhoe as well as an Engine Auto-Idle and Auto-Off, which can be adjusted to set their timing to how you work. And of course, with the SCR Tier 4 Final after-treatment system (Selective Catalytic Reduction), you get fuel savings without compromising power.
Comfort and Visibility
The little things make a big difference. Like a fully integrated loader control lever and the joystick FNR (standard on PowerDrive transmissions) that lets you shift without letting go of the wheel. Or infinitely adjustable pilot control towers and adjustable wrist rests to help anybody work more comfortably. Or optional LED lights that provide more visibility with less power drain on those long nights and a low-profile hood that gives better sight of the bucket. There’s also hands-free Bluetooth with USB, lots of cab options and a hand-stitched, multi-colored, heated suspension seat – the list goes on. Come see for yourself.
Serviceability
Daily maintenance doesn’t get much easier. Check your engine oil, transmission fluid or coolant, and fill-up the fuel and DEF tank (Diesel Exhaust Fluid), all from one ground-level spot. The 580N also offers externally adjustable Extendahoe wear pads so you can quickly tighten up any dipper slop. A battery disconnect and jumpstart terminals – both standard – provide added security and convenient access, and with the SCR-only Tier 4 Final solution, there’s no particulate filter maintenance to worry about.
For more information, check out the 580N brochure.
Standard Equipment
Operator Comfort
- ROPS/FOPS certified protective canopy
- Anti-vandalism cover for dash – w/ canopy only
- Rear fenders extensions
- Coat hook w/ garment strap
- Interior rearview convex mirror
- Mechanical suspension seat – 180° swivel – Vinyl
- 3 in (76 mm) retractable seat belt
- Cup holder/ storage tray mounted on left-hand fender
- Right-hand storage compartment w/ lid
- Tilt-steering wheel on cab models
- Gauges:
- Engine water temperature
- Converter oil temperature
- Fuel level
- Tachometer/ hourmeter
- DEF level
- Warning lights:
- Air cleaner restriction
- Alternator
- A/C high pressure
- Cold start
- Engine oil pressure low
- Hydraulic oil filter bypass
- Parking brake engagement
- Low fuel
- Water in fuel
- Low DEF
- Audible alarms:
- Coolant temperature
- Engine oil pressure
- Parking brake engagement
- Shuttle engagement/seat position
- Backup alarm
- Converter oil temperature
- Low DEF
- Horn – Dual switched front and rear
Drivetrain
- Front axle, as selected:
- 2WD front axle with 11.0 L x 16.0 tires
- 4WD mechanically driven front axle, with 12.0 L x 16.5 tires
- Rear axle:
- 2/4WD heavy-duty outboard planetary drive, with 19.5 L x 24.0 tires
- 4F-4R Power Shuttle
- Synchromesh transmission
- Torque converter – 11.8 in (300 mm)
- On-the-go electric 4WD control
- Electric F/R shuttle control
- Electric differential lock control, with push-button activation on the loader control lever
- Park brake, spring-applied, hydraulic release – SAHR
- Drive shaft guard – 4WD models
Warranty
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
Engine
- FPT F5BFL413C diesel
- Cooled EGR
- Selective Catalytic Reduction – SCR
- Full flow engine oil filter
- Aspirated air cleaner – replaceable dual element dry type with radial seal
- Fuel filter with water trap
- Radiator with de-aeration bottle
- Antifreeze to -34° F (-37° C)
- Throttles, both rotary hand and foot
- Self-adjusting belt
- High Pressure Common Rail computer controlled injection with diagnostic features
- Engine ECO Mode – Detent on backhoe hand throttle, push button switch on dash
- Auto Engine Idle
- Auto Engine Shutdown
- Auto Protection Shutdown
- Electronic Fuel Priming
- Cold Weather Starting Aid: Dual 12 volt batteries, glow plugs, engine block heater and heated CCV hose
Loader
- Bucket position indicator
- Lifting lugs and tie downs on standard bucket
- Single lever control with self-leveling and return-to-dig
- Hand operated clutch disconnects on loader and shift levers, single lever 4-function loader control: lift, dump, clutch cut-out, differential lock
Hydraulics
- Pump:
- 28.5 gal/min @ 3,350 psi
- (107.9 L/min @ 231 bar)
- Heavy-duty hydraulic oil cooler
- 7-micron, spin on oil filter
Backhoe
- Over center design, Fabricated “S” boom
- Open-center hydraulics – ProControl System
- Cleated dirt stabilizer pads
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Other
- Forward tilt engine hood
- Replaceable, molded front bumpers
- Front/Rear tie downs
- Reflective logos
- Signal Lights – cab and canopy:
- 2 rear tail/stop
- 2 front flashers/turn
- 2 rear flashers/turn
- Working/Driving Lights – cab only:
- Adjustable halogen work lights – 55 W:
- 4 front
- 2 side – one left, one right
- 4 rear
- Working/Driving Lights – canopy only:
- Adjustable halogen work lights – 55 W:
- 2 front
- 2 side – one left, one right
- 2 rear
- Master disconnect switch and remote jump-start terminals
- Hydrostatic steering
- Backup alarm
- Vertical spin-on engine oil, fuel and hydraulic filters
- Locking DEF/Fuel covers
- Tool box – bolt-on, step-mounted
Optional Equipment
Engine
- Severe Cold Weather Starting Aid: Synthetic transmission, hydraulic and engine oil – order with cold weather starting aid
Drivetrain
- 4WD heavy-duty mechanically driven front axle with 12.5/80 x 18.0 tires
Loader
- Auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control
- Hydraulic front quick coupler
- Tool portfolio of additional attachments
- Buckets
Other
- Front tires:
- 11.0 L x 16.0 10-ply or 12.0 L x 16.5 10-ply
- 12.5/80 x 18.0 10-ply includes heavy duty front axle
- Rear tires: 500/70 R24 Michelin XMCL Radial Tires
- Special paint
- LED Working/Driving Light Package:
- 4 front
- 4 rear
- 2 side
- Front Fenders
- Special Feature Request
Operator Environment
- Speed Selectable Auto Ride Control – 4WD models
- Comfort Steering with two-speed steering pump and 3rd/4th gear cutout
- ROPS/FOFS certified protective cab available in LH Door or 2 door with heat, A/C, defroster, door activated dome light, 4 front, 4 rear and 2 adjustable side lights, floor mat, tinted glass, bluetooth radio, front and rear wiper and fender extensions.
- Deluxe Cab package included on 2-door cabs includes: deluxe interior, viscous fan, pull-down sun visor and 72 dba sound level
- Premium multi-color, hand stitched cloth, heated air suspension seat – not for use with ROPS Canopy option
Backhoe
- 1-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments
- 1-way/2-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments or switch to 2-way flow for thumbs, augers or similar 2-way flow attachments
- Extendahoe®
- Two-lever backhoe controls
- Pilot operated control system:
- Fingertip proportional Electro-Hydraulic stabilizer controls
- Thumb-operated proportional – Electro-Hydraulic Extendahoe® control
- Thumb-operated auxiliary hydraulic control
- Infinitely adjustable towers
- In-cab switchable “excavator to backhoe” control pattern change
- Flip over stabilizer pads
- Case mechanical quick coupler
- Universal coupler – CAT/Deere compatible
- Buckets
- Hydraulic thumb – Includes: 2 replaceable, high strength, bolt on tines with two positions for Universal or Hi-Cap buckets – meshes with Bucket teeth on 18 in & 24 in Buckets
