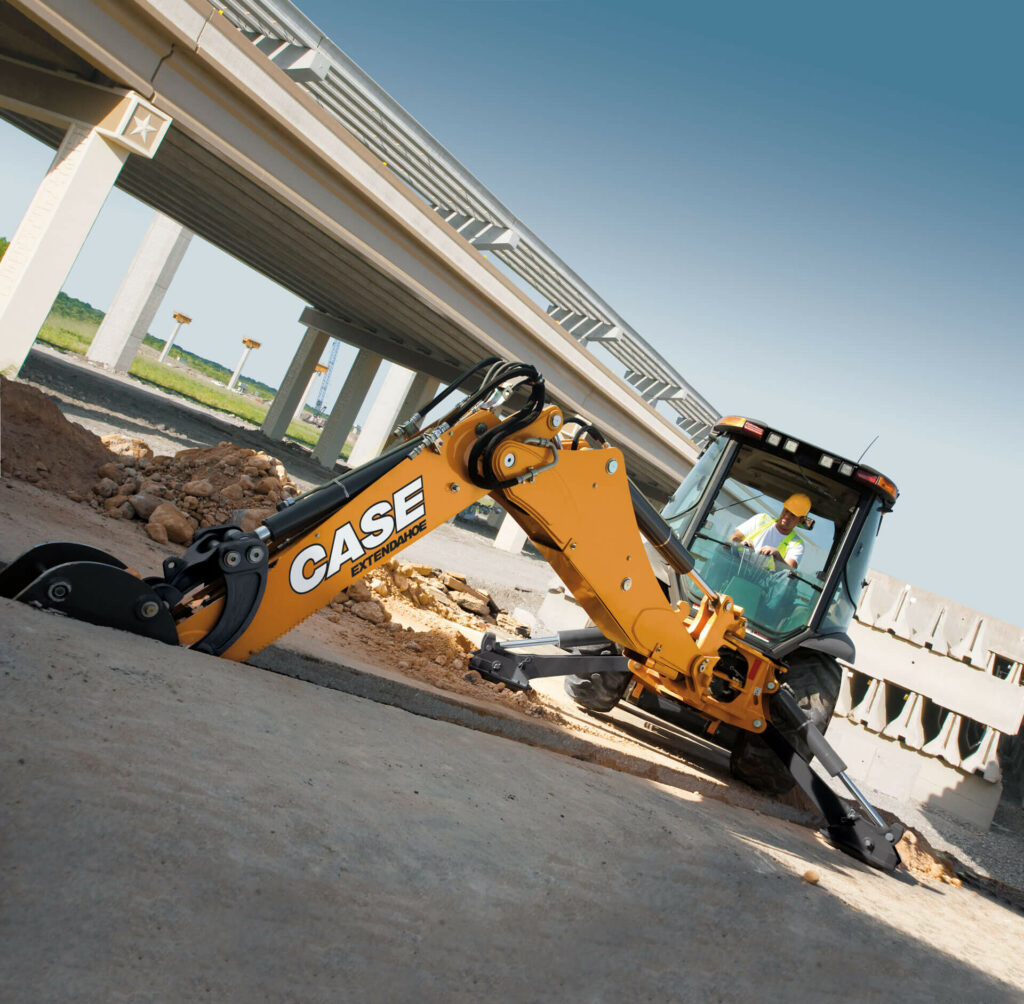

”Super” is a title that has to be earned. Expanding on the rock-solid legacy of previous generations, the Tier 4 Final Super N is quicker, more powerful, more efficient and more productive than ever before. A reengineered PowerDrive transmission option tackles hills and heavy loads with ease and the PowerBoost backhoe button releases ferocious digging force with no RPM loss. Benefit from the precision of ProControl, the fuel savings of ECO Mode and the business smarts of SiteWatch™ Telematics – all standard.
Productivity
Backhoe Loaders do just about everything. And the faster the better. The 580 Super N offers a suite of features to help you work with greater precision and speed. At the push of a button, the PowerBoost option unleashes a surge of hydraulic power for fighting through hard ground. The PowerLift option delivers an industry-leading 4,000 lb. lifting capacity and the standard ProControl anti-rebound system helps you raise, set, dig and dump more accurately. There’s also a universal coupler option for greater backhoe versatility and a factory-installed thumb.
As for loading and roading, the optional PowerDrive 6-speed transmission with automatic drive engagement delivers greater acceleration, increased gradeability, better fuel economy and reduced travel times. Comfort Steer is a must-have option for faster stockpiling and truck loading. When traveling, the adjustable Auto-Ride Control option, combined with our over-center design, provides a smoother ride to prevent spillage.
Fuel Efficiency
As a do-it-all machine, the 580SN uses an SCR Tier 4 Final solution (Selective Catalytic Reduction). It provides fuel savings and compliance while still running at peak performance and with no regeneration downtime or extra fuel burn. ECO Mode comes standard, making it easy to maximize fuel efficiency when using the backhoe or loader. The package also includes engine Auto-Idle and Auto-Off to minimize wasted fuel or lease hours. The timing of both can be adjusted to your preference.
Comfort and Visibility
Whether in cab or canopy, optional LED lights provide brighter, overlapping coverage that drains less power. Cabs have floor-to-ceiling glass and opening rear-quarter windows for exceptional visibility, airflow and communication with ground crew. Other options include a hands-free Bluetooth radio with USB and our best seat yet with more adjustments, built-in heater and a hand-stitched design. The 580 Super N offers intuitive fingertip controls for the loader and backhoe pilot configurations, including a joystick FNR rocker, self-leveling, return-to-dig, auxiliary hydraulics and more. Pilot controls and armrests can be repositioned for custom comfort and classic foot-swing “CASE controls” with mechanical levers are also available.
Serviceability
Like all N Series backhoes, the 580SN has routine checkpoints and fuel ports located on one, ground-accessible side of the machine. Swing-out coolers and a flip-up hood provide easy service access to vital systems, and our Extendahoe® has externally adjustable wear pads so you can quickly tighten tolerances with simple tools to reduce unwanted slop. And with the standard 3-year SiteWatch Telematics advanced data subscription, it’s easy to monitor machine hours and performance to maximize ROI.
For more information, check out the 580 SUPER N brochure.
Standard Equipment
Operator Environment
- ROPS/FOPS certified protective canopy
- Anti-vandalism cover for dash – w/ canopy only
- Rear fenders extensions
- Coat hook w/ garment strap
- Interior rearview convex mirror
- Mechanical suspension seat – 180° swivel – Vinyl
- 3 in (76 mm) retractable seat belt
- Cup holder/ storage tray mounted on left-hand fender
- Right-hand storage compartment w/ lid
- Tilt-steering wheel on cab models
- Gauges:
- Engine water temperature
- Converter oil temperature
- Fuel level
- Tachometer/ hourmeter
- DEF Level
- Warning lights:
- Air cleaner restriction
- Alternator
- A/C high pressure
- Cold start
- Engine oil pressure
- Hydraulic oil filter bypass
- Parking brake engagement
- Low fuel
- Water in fuel
- Low DEF
- Audible alarms w/ diagnostics:
- Coolant temperature
- Engine oil pressure
- Parking brake engagement
- Converter oil temperature
- Shuttle engagement/seat position
- Backup alarm
- Low DEF
- Horn: Dual switched front and rear
Drivetrain
- Power Shuttle 4F-4R synchromesh transmission
- Front axle:
- 2WD front axle with 11.0 L x 16.0 tires
- 4WD mechanically driven front axle with 12.0 L x 16.5 tires and drive shaft guard
- Rear axle:
- 2/4WD heavy-duty outboard planetary drive, with 19.5 L x 24.0 tires
- Torque converter – 11.8 in (300 mm)
- On-the-go electric 4WD control
- Electric F/R shuttle control
- Electric differential lock control, push-button
- Park brake, spring-applied, hydraulic release – SAHR
- Drive shaft guard – 4WD models
Warranty
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
Engine
- FPT F5BFL413B diesel
- Selective Catalytic Reduction – SCR
- Full flow engine oil filter
- Aspirated air cleaner – replaceable dual element dry type with radial seal
- Fuel filter with water trap
- Radiator with de-aeration bottle
- Antifreeze to -34° F (-37° C)
- Electronic throttles – foot and rotary hand
- Self-adjusting belt
- High Pressure Common Rail computer controlled injection with diagnostic features
- Engine ECO Mode – Detent on backhoe hand throttle, push button switch on dash
- Auto Engine Idle
- Auto Engine Shutdown
- Auto Protection Shutdown
- Electronic Fuel Priming
- Cold Weather Starting Aid: Dual 12 volt batteries, glow plugs, engine block heater and heated CCV hose
Loader
- Bucket position indicator
- Lifting lugs and tie downs on standard bucket
- Single lever control with self-leveling and return-to-dig
- Hand operated clutch disconnects on loader and shift levers, single lever 4-function loader control: lift, dump, clutch cut-out, differential lock
Hydraulics
- Ground level remote hydraulic test ports
- Pump:
- 41 gpm @ 3,000 psi
- (156.2 L/min @ 207 bar)
- Heavy-duty hydraulic oil cooler
- 7-micron, spin on oil filter
Backhoe
- Over center design, Fabricated “S” boom
- Pro Control System
- Dipperstick integrated serrated gripper teeth
- CASE mechanical coupler
- Cleated dirt stabilizer pads
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Other
- Forward tilt engine hood
- Replaceable, molded front bumpers
- Front/Rear tie downs
- Reflective logos
- Signal Lights – cab and canopy:
- 2 rear tail/stop
- 2 front flashers/turn
- 2 rear flashers/turn
- Working/Driving Lights – cab and canopy:
- Adjustable halogen work lights – 55 W:
- 4 front
- 2 side – one left, one right
- 4 rear
- Master disconnect switch and remote jump-start terminals
- Hydrostatic steering
- Backup alarm
- Vertical spin-on engine oil, fuel and hydraulic filters
- Locking DEF/Fuel covers
- Tool box – bolt-on, step-mounted
Optional Equipment
Drivetrain
- PowerDrive H-Type transmission, 4F-4R, hydraulic clutch shifting, kick down, transmission disconnect and FNR switch in loader control lever, includes auto shift mode and direct drive
- 4WD heavy-duty mechanically driven front axle with 12.5/80 x 18.0 tires
Engine
- Severe Cold Weather Starting Aid:
- Synthetic transmission, hydraulic and engine oil – order with cold weather starting aid
Loader
- Auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control
- Hydraulic front quick coupler
- Tool portfolio of additional attachments
- Buckets
Other
- Front tires:
- 11.0 L x 16.0 or 12.0 L x 16.5
- 12.5/80 x 18.0 10-ply includes heavy duty front axle
- Rear tires:
- 500/70 R24 Michelin or 19.5 L x 24.0
- Special paint
- LED Working/Driving Light Package:
- 4 front
- 4 rear
- 2 side
- Front fenders
- Special feature request
Operator Environment
- Speed selectable Auto Ride Control – 4WD models
- Comfort Steering with two speed steering pump and 3rd/4th gear cutout
- ROPS/FOFS certified protective cab available in LH Door or 2 door with heat, A/C, defroster, door activated dome light, 4 front, 4 rear and 2 adjustable side lights, floor mat, tinted glass, bluetooth radio, front and rear wiper and fender extensions
- Deluxe Cab package included on 2-door cabs includes: deluxe interior, viscous fan, pull-down sun visor and 72 dba sound level
- Premium multi-color, hand stitched cloth, heated air suspension seat – not for use with ROPS Canopy option
Backhoe
- 1-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments
- 1-way/2-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments or switch to 2-way flow for thumbs, augers or similar 2-way flow attachments
- Extendahoe®
- Power Lift
- Power Boost
- Bolt-on hardened gripper teeth
- Two-lever controls – backhoe or Extendahoe®
- Pilot operated control system:
- Fingertip proportional Electro-Hydraulic stabilizer controls
- Thumb-operated proportional – Electro-Hydraulic Extendahoe® control
- Thumb-operated horn button
- Thumb-operated auxiliary hydraulic control
- Infinitely adjustable towers
- In-cab switchable “excavator to backhoe” control pattern change
- Flip over stabilizer pads
- Hydraulic bucket quick coupler
- Universal coupler – CAT/Deere compatible
- Buckets
- Hydraulic thumb – Includes: 2 replaceable, high strength, bolt on tines with two positions for Universal or Hi-Cap buckets – meshes with Bucket teeth on 18 in & 24 in Buckets
