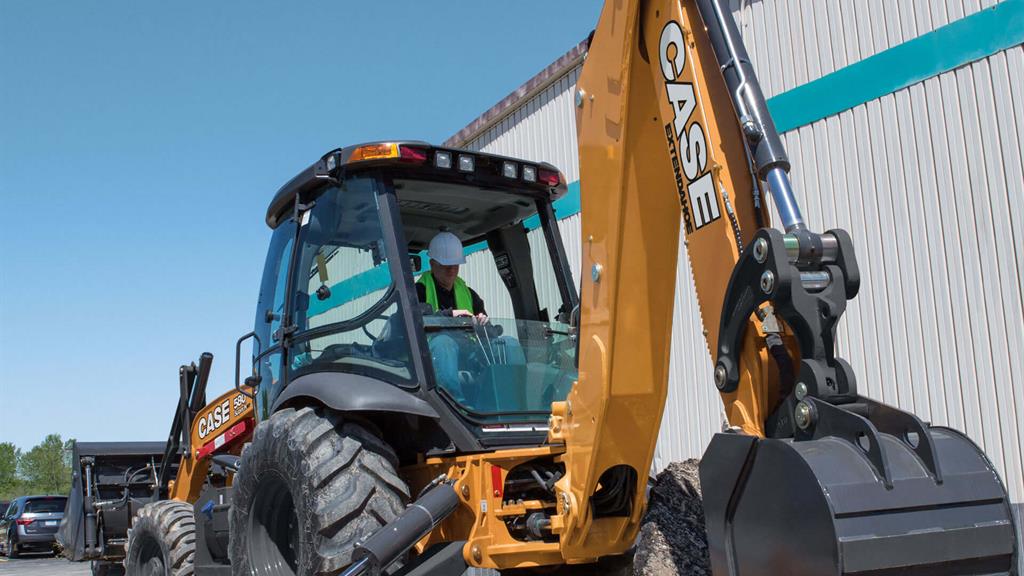

With a more powerful engine and at nearly 102 inches wide, the 110-hp 580 Super N Wide Track takes our most popular backhoe loader to a whole new level. It provides greater strength and stability, and houses a spacious, upgraded cab with intuitive fingertip controls. More high-performance features that contractors want come standard, including the responsive PowerDrive transmission, fierce PowerBoost function, fuel-saving ECO Mode, ProControl and SiteWatch™ Telematics. It can also be configured with Comfort Steer for truck-loading tasks, selectable Auto-Ride Control and more.
Productivity
Not only does this wide track model provide better flotation, lower ground pressure and enhanced stability, it packs more power with bucket breakout of over 15,000 lb., the N Series’ highest full-height loader lifting capacity of 8,425 lb. and a backhoe lifting capacity of 3,761 lb. (w/PowerLift). A revamped PowerDrive direct-drive 6-speed transmission with limited-slip front differential gives greater acceleration and gradeability, and at the touch of a button, PowerBoost provides a burst of increased digging force.
Other high-performance features include the boom-swinging precision of ProControl, a speed-selectable Auto-Ride Control, Comfort Steer to save time during loading or stockpiling work, a universal backhoe coupler, factory-installed thumb and SiteWatch Telematics to monitor and maximize your machine’s productivity.
Fuel Efficiency
The 580 Super N WT is counted on for its strength, so it needs as much power as it can get. That’s why the Tier 4 Final FPT engine uses SCR-only technology (Selective Catalytic Reduction) to meet emission regulations. As an after-treatment system, SCR lets the engine breathe easier and run at peak performance, and there’s no excess fuel burn for regeneration. Simply add DEF (Diesel Exhaust Fluid) at fill-up. Other fuel-saving standard features include ECO Mode, engine Auto-Idle and Auto-Off, which can have their timing adjusted to your preference.
Comfort and Visibility
Cab options keep operators comfortable with a hands-free Bluetooth radio, USB input, premium hand-stitched seat with heat and lumbar support, and more. A low-profile hood allows for greater sightlines to the loader bucket and cabs have floor-to-ceiling windows and opening rear-quarter windows for exceptional visibility, airflow and communication. Backhoe pilot controls and armrests are fully adjustable and loader joysticks feature fingertip controls for intuitive functions such as self-leveling, return-to-dig as well as an FNR switch on PowerDrive models so operators can quickly shift directions without letting go of the steering wheel. An LED light package is also available for enhanced nighttime visibility with lower power drain.
Serviceability
On the 580SN WT, you can check engine oil, transmission fluid or coolant, and fill-up the fuel and DEF tank, all from one ground-level spot. Swing-out coolers and a flip-up hood provide easy service access to vital systems, and the Extendahoe® has externally adjustable wear pads for tightening dipper tolerances using simple tools – no shop necessary. Standard battery disconnect and jumpstart terminals provide added security and convenient access, and with SCR, there’s no particulate filter to maintain.
For more information, check out the 580 SUPER N WT brochure.
Standard Equipment
Operator Comfort
- ROPS/FOPS certified protective canopy
- Anti-vandalism cover for dash – w/ canopy only
- Rear fenders extensions
- Coat hook w/ garment strap
- Interior rearview convex mirror
- Mechanical-suspension seat – 180° swivel – Vinyl
- 3 in (76 mm) retractable seat belt
- Cup holder/ storage tray mounted on left-hand fender
- Right-hand storage compartment w/ lid
- Tilt-steering wheel on cab models
- Gauges:
- Engine water temperature
- Converter oil temperature
- Fuel level
- Tachometer/ hourmeter
- DEF level
- Warning lights:
- Air cleaner restriction
- Alternator
- A/C high pressure
- Cold start
- Engine oil pressure
- Hydraulic oil filter bypass
- Parking brake engagement
- Low fuel
- Water in fuel
- Low DEF
- Audible alarms w/ diagnostics:
- Coolant temperature
- Engine oil pressure
- Parking brake engagement
- Converter oil temperature
- Shuttle engagement/seat position
- Backup alarm
- Low DEF
- Horn: Dual switched front and rear
Drivetrain
- PowerDrive H-Type transmission, 4F-4R, hydraulic clutch shifting, kick down, transmission disconnect and FNR switch in loader control lever, includes auto shift mode and direct drive
- Front axle:
- 4WD heavy-duty mechanically driven front axle with 14.0 L x 17.5 tires, limited slip differential and drive shaft guard
- Rear axle:
- 4WD heavy-duty outboard planetary drive, with 21.0 L x 24.0 tires
- Torque converter – 12 in (305 mm)
- On-the-go electric 4WD control
- Electric F/R shuttle control
- Electric differential lock control, push-button
- Park brake, spring-applied, hydraulic release – SAHR
- Drive shaft guard – 4WD models
Warranty
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
Engine
- FPT F5BFL413B diesel
- Selective Catalytic Reduction – SCR
- Full flow engine oil filter
- Aspirated air cleaner – replaceable dual element dry type with radial seal
- Fuel filter with water trap
- Radiator with overflow bottle
- Antifreeze to -34° F (-37° C)
- Electronic throttles – foot and rotary hand
- Self-adjusting belt
- High Pressure Common Rail computer controlled injection with diagnostic features
- Engine ECO Mode – Detent on backhoe hand throttle, push button switch on dash
- Auto Engine Idle
- Auto Engine Shutdown
- Auto Protection Shutdown
- Electronic Fuel Priming
- Cold Weather Starting Aid: Dual 12 volt batteries, glow plugs, engine block heater and heated CCV hose
Loader
- Bucket position indicator
- Lifting lugs and tie downs on standard bucket
- Single lever control with self-leveling and return-to-dig
- Hand operated clutch disconnects on loader and shift levers, single lever 4-function loader control: lift, dump, clutch cut-out, differential lock and FNR switch
Hydraulics
- Ground level remote hydraulic test ports
- Variable displacement axial piston pump
- Pump:
- 41 gpm @ 3,000 psi
- (156.2 L/min @ 207 bar)
- Heavy-duty hydraulic oil cooler
- 7-micron, spin on oil filter
Backhoe
- Over center design, Fabricated “S” boom
- Pro Control System
- Dipperstick integrated serrated gripper teeth
- Case mechanical coupler
- Power Lift, Power Boost
- Extendahoe®
- Cleated dirt stabilizer pads
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
Other
- Front tire 12.5/80 x 18.0, 10-PR
- Rear tire 21.0 L x 24.0, 10-PR
- Forward tilt engine hood
- Replaceable, molded front bumpers
- Front/Rear tie downs
- Reflective logos
- Signal Lights – cab and canopy:
- 2 rear tail /stop
- 2 front flashers/turn
- 2 rear flashers/turn
- Working/Driving Lights – cab and canopy:
- Adjustable halogen work lights – 55 W:
- 4 front
- 2 side – one left, one right
- 4 rear
- Master disconnect switch and remote jump-start terminals
- Hydrostatic steering
- Backup alarm
- Vertical spin-on engine oil, fuel and hydraulic filters
- Locking DEF/Fuel covers
- Tool box – bolt-on, step-mounted
Optional Equipment
Loader
- Auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control
- Hydraulic front quick coupler
- Tool portfolio of additional attachments
- Buckets
Engine
- Severe Cold Weather Starting Aid: Synthetic transmission, hydraulic and engine oil – order with cold weather starting aid
Other
- Front tires: 12.5/80 x 18, 10 PR
- Rear tires: 21 L x 24, 10 PR or 540/70 R24 Michelin
- Special paint
- LED Working/Driving Light Package:
- 4 front
- 4 rear
- 2 side
- Front fenders
- Special feature request
Operator Environment
- Speed selectable Auto Ride Control
- Comfort Steering with two-speed steering pump and 3rd/4th gear cutout
- ROPS/FOPS certified protective cab available in LH Door or 2 door with heat, A/C, defroster, door activated dome light, 4 front, 4 rear and 2 adjustable side lights, floor mat, tinted glass, bluetooth radio, front and rear wiper and fender extensions
- Deluxe Cab package included on 2-door cabs includes: deluxe interior, viscous fan, pull-down sun visor and 72 dba sound level
- Premium multi-color, hand stitched cloth, heated air suspension seat – not for use with ROPS Canopy option
Backhoe
- 1-way/2-way Auxiliary backhoe hydraulics for hammers, plate compactors or similar 1-way flow attachments or switch to 2-way flow for thumbs, augers or similar 2-way flow attachments
- Bolt-on hardened gripper teeth
- Two-lever control
- Pilot operated control system
- Fingertip proportional Electro-Hydraulic stabilizer controls
- Thumb-operated proportional Electro-Hydraulic Extendahoe® control
- Thumb-operated horn button
- Thumb-operated auxiliary hydraulic control
- Infinitely adjustable towers
- In-cab switchable “excavator to backhoe” control pattern change
- Hydraulic bucket quick coupler
- Universal coupler – CAT/Deere compatible
- Flip over stabilizer pads
- Buckets
- Hydraulic thumb – Includes: 2 replaceable, high strength, bolt on tines with two positions for Universal or Hi-Cap buckets – meshes with Bucket teeth on 18 in & 24 in Buckets
